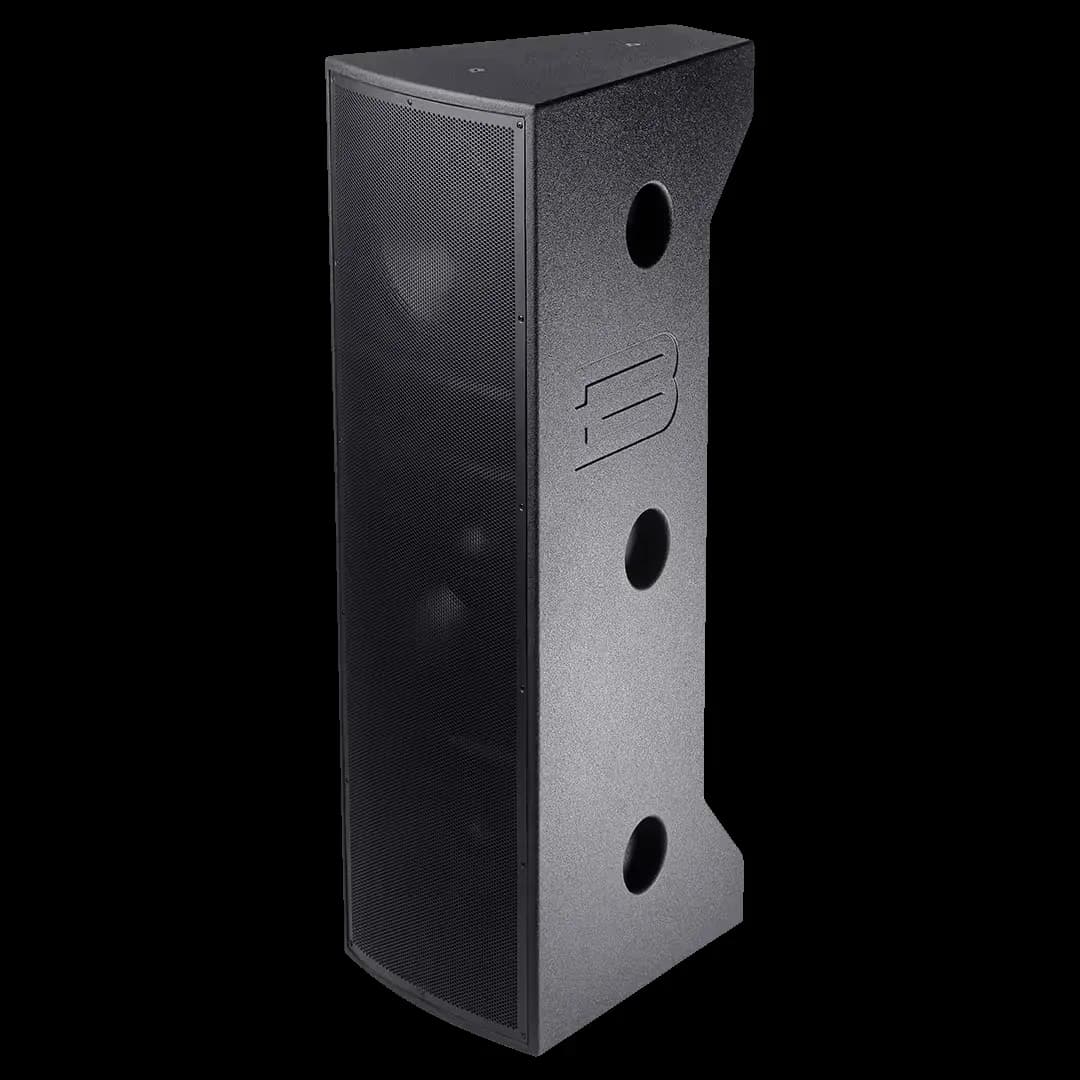

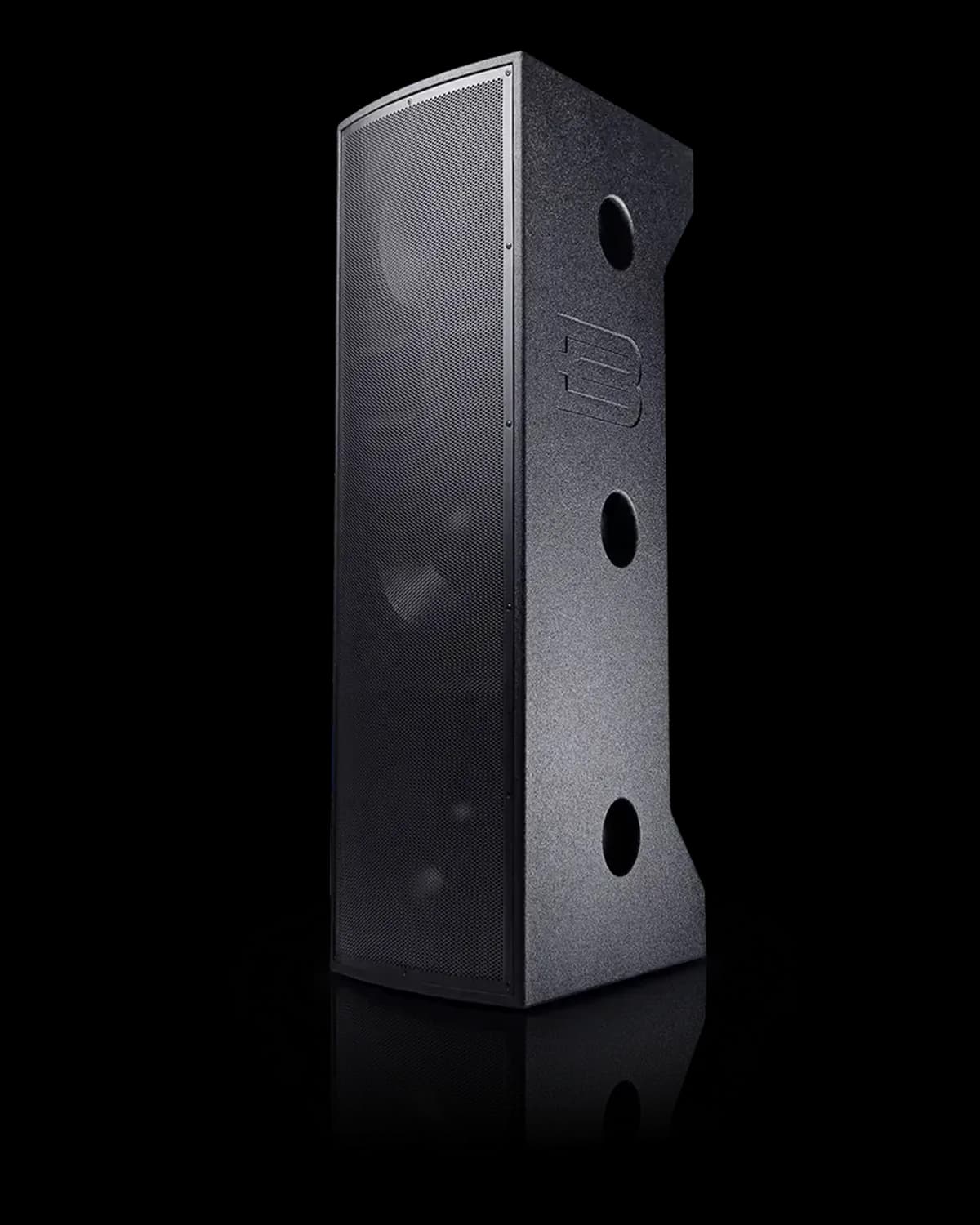

AT312 Triple 12″ Powered Top

Crystal Clear Sound

Specs  |  Top

US$4,995.00

US$4,995.00

Extraordinary
Clarity

The AT312 Attuned Top is a co-axial point-source cabinet for medium to short distance coverage where high output, a small footprint and very high fidelity are required. Extremely compact, simple to use, easy to set up, and attractive, it offers superbly uncolored sound and natural musical character.

Sophisticated
Sound

The AT312 Attuned Top provides studio-reference sound quality at high levels from a compact and lightweight loudspeaker. It is intended for use with subwoofers to complete a 4-way active full-range system for short to medium distance coverage.

Advantages

The advantages offered by AT312 Tops are their coherence, accuracy, dynamic resolution and robust reliability. Premium performance that rivals expensive European imports but with USA made quality and reliability and at a fraction of their prices. These tops are designed to integrate with the BASSBOSS subwoofers to create accurate, dynamic and coherent systems that work together to ensure the best possible results from top to bottom.

Just add
subs

When combined with subwoofers like the SSP218 Powered Subwoofer or ZV28 Powered Sub, the result is an extremely high-resolution 4-way active loudspeaker system with virtually unparalleled resolution and dynamic power for its size. Its driver compliment incorporates dual 12” woofers in a vented enclosure for low frequencies and a 12” midrange driver in a sealed enclosure with a co-axially mounted 1.4” exit compression driver. Coverage is 80 degrees conical. One-man set up of a substantial system is made easy because the AT312 cabinets weigh only 88 lbs each.

Maximize
Output

Dual 12” low frequency drivers were chosen to minimize cabinet frontal area while delivering the best possible speed and impact in their operating range. Thanks to the narrow frontal area, the low frequency drivers couple coherently when multiple cabinets are arrayed, providing powerful mid-bass impact from a small, lightweight box. The 12” coaxial drivers also serve to minimize frontal area while maximizing output.

The loudspeaker behaves as a point-source, which deliver more consistent off-axis performance than conventional loudspeakers with separate mid and high frequency drivers. This feature enhances resolution and the consistency also enhances the loudspeaker’s versatility, allowing it to be mounted horizontally or vertically with no compromise in coverage or performance. The 48” tall box elevates the mid and high frequency radiators to a minimum of 7’6” on center when stacked on the corresponding subwoofer systems.

Love this speaker!

Morphed Productions

Full spectrum clarity! This is a great speaker.

The AT312s are amazing

Justin B.

Just wanted to let you know that we received the speakers this past Friday and everyone is thrilled. The AT312s are amazing. We did an A/B comparison test outside against 6 QSC KLA 12″ line array cabs and the 312’s blew them away.

5-⭐️ treatment for sure!

Caleb Burton | Rize Entertainment-Texas

The entire BASSBOSS team has been great. David Lee took the time to speak with me at length by phone prior to my purchase, and his team has reached out to me since to check on things a few times. 5-Star treatment for sure.

High
Fidelity

When an AT312 is used with a BASSBOSS powered subwoofer the result is a very effective, practical, high fidelity 4-way active loudspeaker system. The simplicity and ease of these components together, coupled with fidelity and reliability that are industry leading, will delight anyone who is regularly moving gear

Co-axial
Consistency

Any speaker that has the tweeter horizontally or vertically offset from the mid-frequency driver produces very different response as one moves through its coverage area from the tweeter side to the woofer side. This is due to the different distances the sound has to travel to reach the ears. Due to the co-axial construction of the AT312 the path length difference between lows and highs is the same in any direction, allowing extremely consistent off-axis response regardless of which direction you move away from directly on center.

Tech Specs



Loudspeaker Description Point-source mid-high cabinet with 80 degree conical coverage for horizontal or vertical applications
Frequency Response (±3 dB) 50 – 18,000 Hz
Maximum Sustained Output 128 dB
Max SPL (Peak)* 142 dB
Nominal Dispersion (H° x V°) 80 x 80 (Conical)
Amplification 3000 Watt 4 Channel Powersoft Class D Amplifier
Processing Integrated comprehensive DSP provides high pass, low pass, equalization, phase alignment and limiting; Dual 24 bit 48kHz, 116 dB(A) signal to noise ratio with 4 presets
Enclosure Type 3-way mid-high. Direct radiating, vented enclosure LF section, acoustic suspension MF section with co-axially mounted, horn-loaded HF section
Transducer (Low Frequency) 2 x 12 in. diameter (300 mm) neodymium motor woofer with 3 in. (76 mm) voice coil, waterproof cone
Transducer (Mid Frequency) 12 in. diameter (300 mm) neodymium motor midrange driver with co-axial HF exit
Transducer (High Frequency) 1 x 1.4 in. exit 3 in. (76 mm) voice coil compression driver mounted to 80 degree conical wave guide
Cabinet Construction 18mm Baltic Birch plywood, dado joinery, integrated handles, 20 degree side angle trapezoid
Dimensions (HxWxD) 48 in. x 15 in. (f) x 14 in.
Net Weight 90 lbs
Shipping Weight 110 lbs



Loudspeaker, manual, and power cable included.



True Specifications

BASSBOSS technical specs are based on measurements of continuous performance in normal usage. Other manufacturers may specify output based on calculations rather than measurements; measurements outside the operating bandwidth; or on ‘Burst’ or ‘Peak’ readings.

BASSBOSS specifications are conservative compared to most manufacturers. They reflect what the products will achieve, consistently, in the real world. Since the real world is where you’ll be using your gear.

Our proactive philosophy causes specifications to be subject to change whenever improvements are made.

*Peak output is calculated using “industry standard” techniques. These calculation methods create theoretical specifications that are inflated over what can actually be achieved. BASSBOSS real world output specifications are provided as “Maximum Sustained Output” ratings, which reflect actual measured, continuous output levels.

Deep Dive

Hand-Built Cabinets

Transportation and set-up of the SSP218/AT312 combination is easy because the subwoofers serve as a rolling carrier for the tops. In most venues it’s possible for one person to roll the system into place, lock the casters, tilt up the tops, plug in the power and signal and have an extremely substantial system ready to play in a few short minutes.

The 48” tall box elevates the mid and high frequency radiators to a minimum of 7’6” on center when stacked on BASSBOSS subwoofer systems. The cabinets also include an interlock socket to secure them in place on top of BASSBOSS subwoofers.

BASSBOSS cabinets are CNC machined and hand-assembled in the USA. Constructed from 18mm Baltic Birch plywood, using dado joints, screws and advanced composite adhesives.

Created to stand up to intense use. The cabinet is finished in an extremely rugged, black polyurethane coating. Drivers are protected by a black powdercoated, perforated steel grill, and the amp is recessed into the back of the cabinet for protection from damage in transit.

Included Suspension System. 4 x 3/8”-16tpi threaded flypoints.

Prodigious Amplification

The amplifier consists of 4 channels with a total of 3,000W. The amplifier features extremely high dynamic power capacity, with 150 Volts peak output per channel, along with high damping of >10000:1 Each driver is connected to a dedicated amp channel to ensure the most accurate performance possible.

Efficient, PFC power supply and class D output topology offers exceptional dynamic resolution and detail along with precise control. It features low current draw and light weight, relative to the high-output capacity.

All the processing necessary for linear frequency response and phase coherent operation are pre-programmed into the DSP. With the comprehensive processing built in, BASSBOSS loudspeakers provide the ease of plug-and-play operation and the peace of mind that comes from knowing that the multiple limiter systems make to system virtually indestructible.

Rugged Drivers

The highest quality drivers are used in the AT312 for extreme clarity and studio-reference sound quality at high levels. The AT312 low-frequency section features a pair of  3″ voice coil, 12″ woofers in a vented enclosure. The midrange section features a 3″ voice coil, 12″ cone mid driver in a sealed enclosure. The high-frequency section features a 3″ voice coil, 1.4″ exit compression driver coaxially loaded and firing through the center of the 12″ midrange.

All the drivers feature Neodymium motor structures for the highest efficiency to weight ratio. All the drivers also have 3″ voice coils. The woofer and midrange coils are copper whereas the compression driver voice coil is aluminum. High-intensity Neodymium magnets are lighter and provide higher efficiency so the result is a lighter and louder cabinet.

The cones are waterproofed to protect them from possible, accidental exposure to moisture such as rain or spilled beverages. Waterproofed woofer cones also permit the cleaning of drivers that have been soiled in a dirty or dusty environment with the use of a damp cloth. Keep the amplifiers dry and party on!

Waterproofed cones in all products. Optional weatherized and weather resistant loudspeakers have the same acoustical performance as our standard options. If your system is likely to be exposed to rain, ask about IP rated amplification options. If you have need of a system for outdoor installation, ask about Weatherized products.

Focused Tuning

BASSBOSS speakers can be connected directly to your mixer with nothing but signal cable in between. The built-in processing is comprehensive and includes all necessary high-pass and low-pass filters along with equalization and phase alignment processing to ensure coherent response when deployed with BASSBOSS subwoofers.

There is no need for any additional EQ in the signal path for the speaker to provide a broad, flat frequency response. Sophisticated DSP programming ensures the speakers deliver consistent sound quality no matter the input level.

Plug-and play with peace of mind. Multiple, sophisticated protection systems make the loudspeaker virtually indestructible. You can turn on and turn up, all night, without fear of over-driving to the point of damage.

Preset Modes

The presets allow the AT312s to be combined with various subwoofer configurations and allow the sound to be tailored to different environments. It is recommended to listen to the presets in each new environment and choose the one that sounds and performs best in that environment.

Preset 1: 50Hz high-pass filter.  Provides maximum possible LF output. Recommended for use when no sub is available.  Also recommended for use when subs are not co-located with the tops, such as when the subs are center-clustered. Can be used to provide supplementary output for smaller subs.

Preset 2: 60Hz high-pass filter.  Reduced LF demand on amplifier and drivers results in increased amplifier headroom and reduced port air velocity. Recommended for use when subs are center clustered but slightly higher SPL is required than Preset 1 can deliver.

Preset 3: 70Hz high-pass filter. Reduced LF demand provides greater headroom for increased maximum output SPL over presets 1 and 2.  Increased HF output capacity for larger spaces and greater distances to be covered.

Preset 4: 80Hz high-pass. Maximum output setting. Provides the highest output of High Frequencies.  Recommended for use with multiple subwoofers and/or when maximum SPL and maximum distance coverage is required. Recommended for use outdoors or in very large spaces.

Presets 2, 3 and 4 allow the AT312s to be combined with various subwoofer configurations and allow the sound to be tailored to different environments. It is recommended to listen to the appropriate presets in each new setting and choose the one that works best in that environment.
