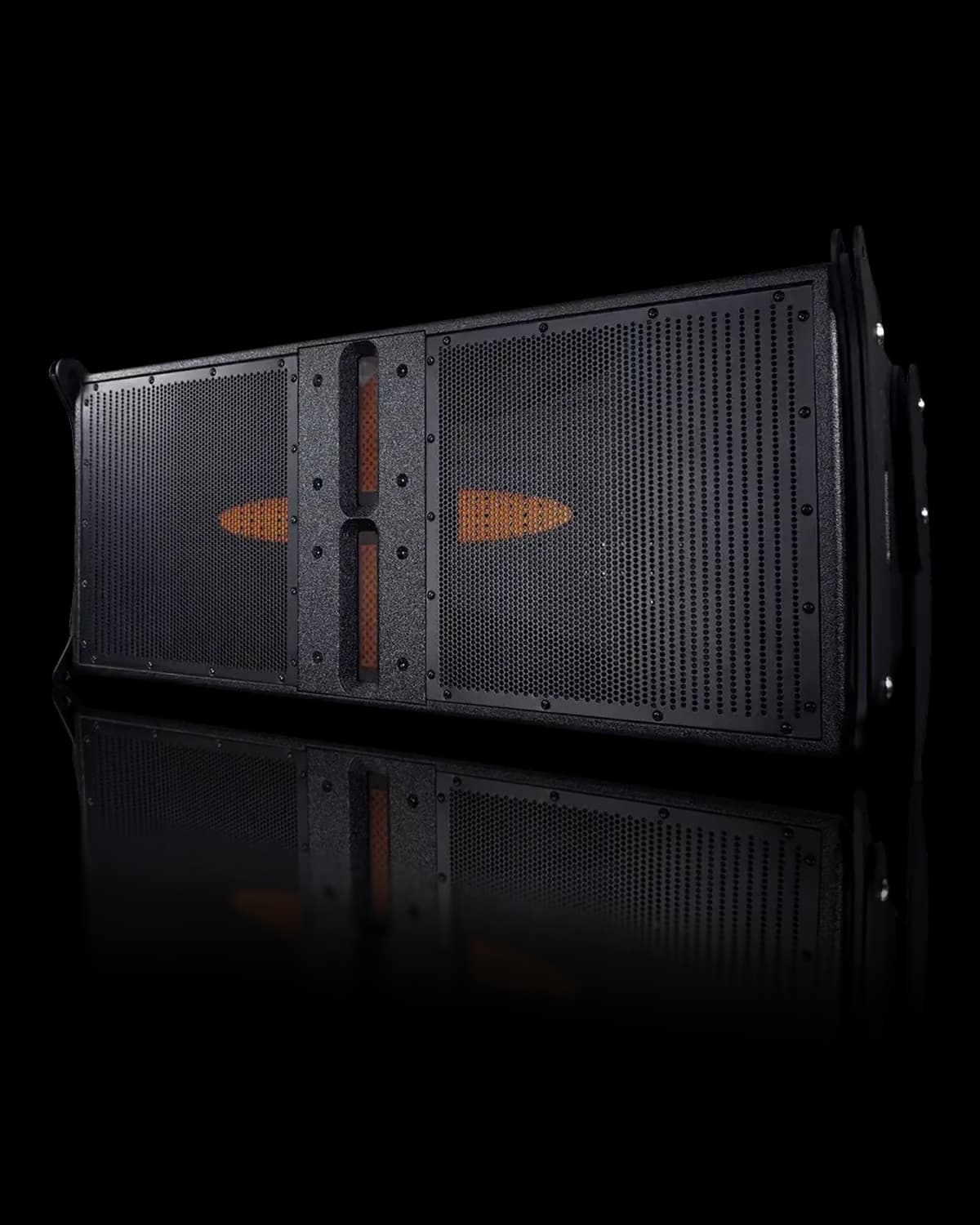

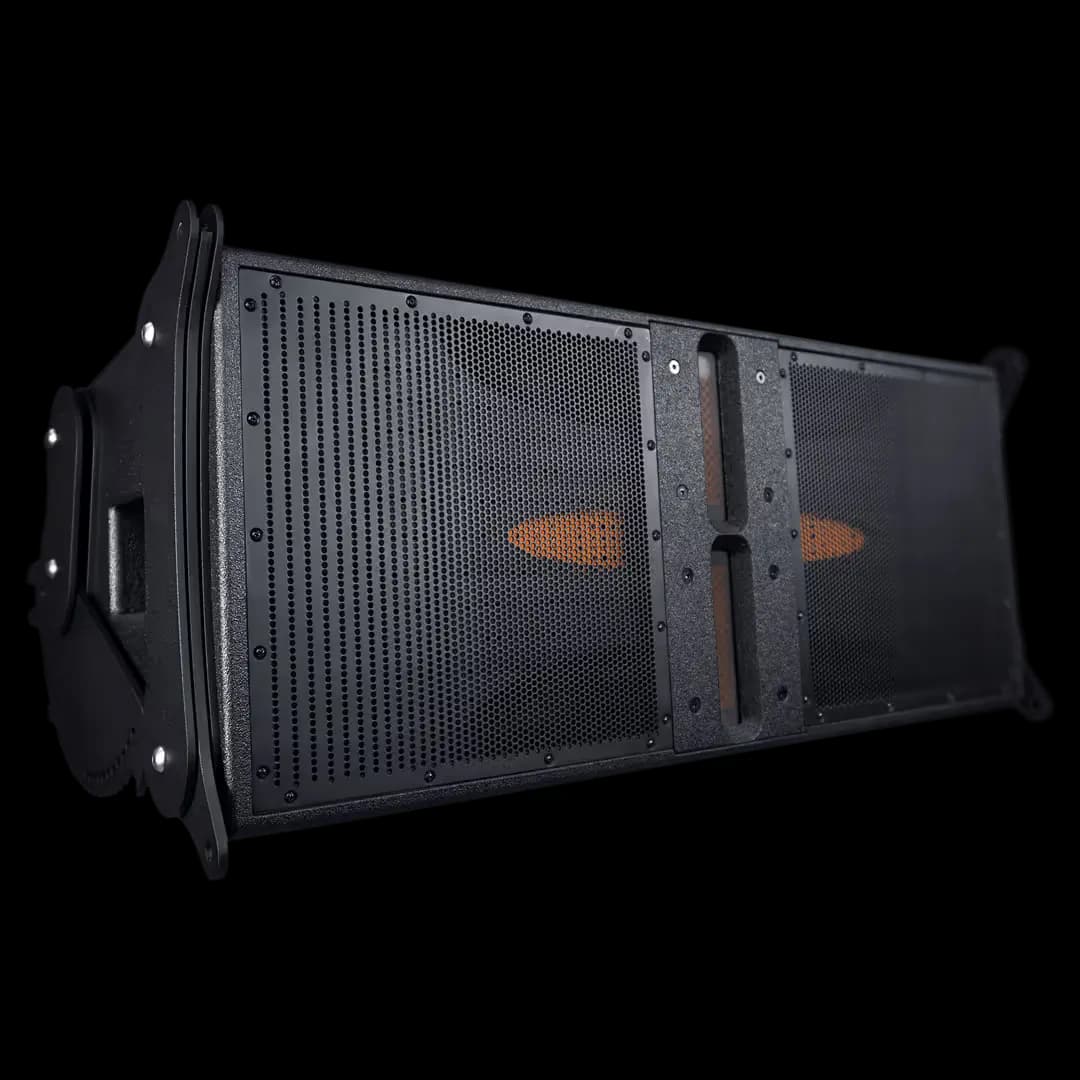

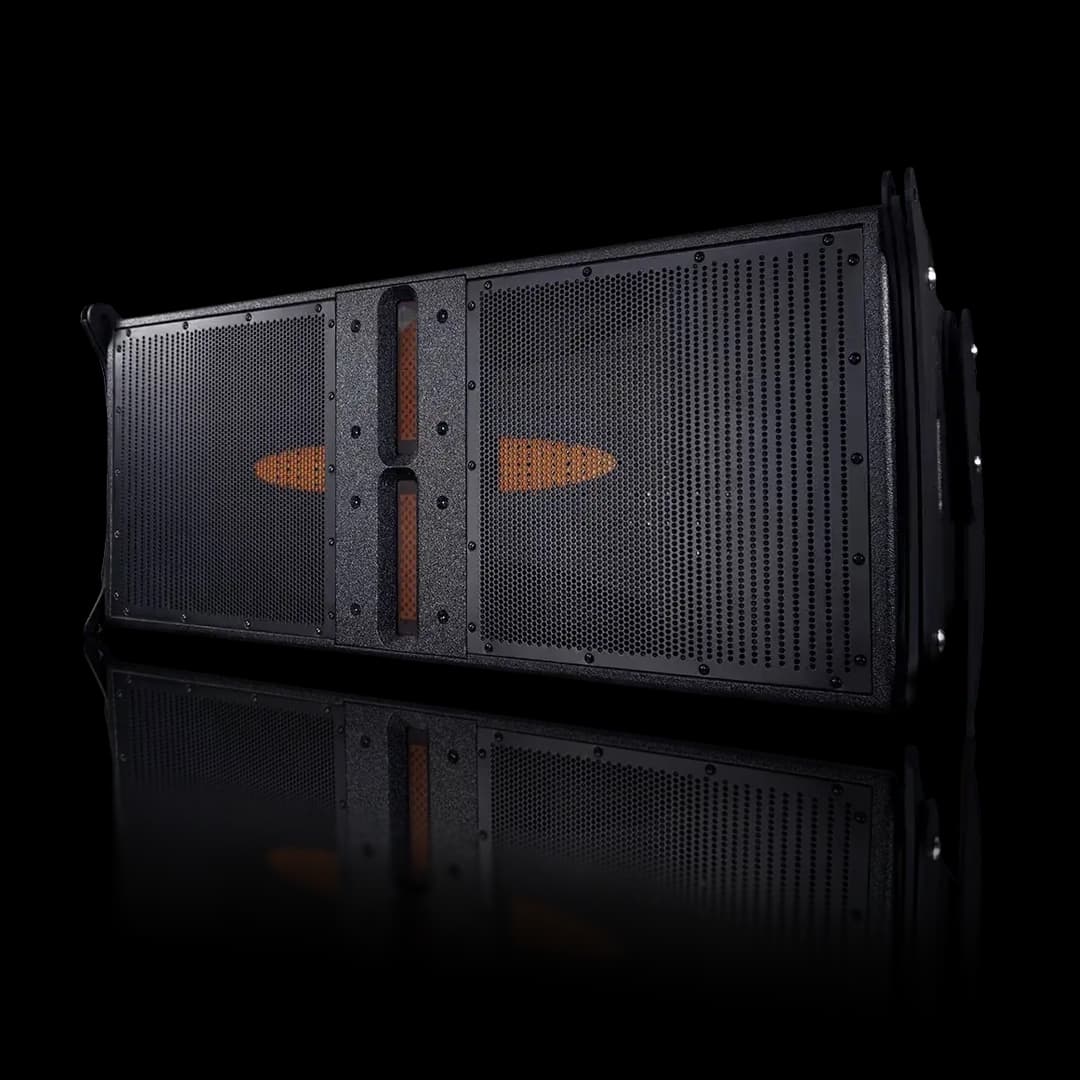

MFLA Dual 12″ Powered Line Array

Focused + Formidable

Specs  |  Top

US$6,600.00

US$6,600.00

Extraordinarily
Powerful

Extraordinarily Powerful, Massive Output, True Line Array

Delivers a remarkable combination of flat frequency response, intense output, broad coverage and long throw.

Massive Output

The MFLA is a dual 12” line array element featuring dual 3” voice coil, 1.4” throat compression drivers, a 3000W amplifier and an integrated DSP. A 3000W RMS amplifier provides the MFLA with very high SPL capabilities and plenty of dynamic headroom. Low current draw and light weight relative to their output capacity means you can provide intense sound with less power and fewer boxes.

The comprehensive processing ensures consistent, undistorted high-SPL operation and maximum reliability. All the processing necessary for linear frequency response and phase coherent operation are pre-programmed into the DSP, delivering exceptional dynamic resolution and detail along with precise control.

Peace of
Mind

The proprietary processing programmed into the BASSBOSS MFLA provide the ease of plug-and-play operation and very simple and easy setups. You also get the peace of mind that comes from knowing that the integrated limiters make the system capable of operating reliably at extremely high output levels.

Diffraction
Matrix

The MFLA cabinet features innovations in performance and practicality. The forward output of the dual 12” woofers passes through a multi-aperture diffraction matrix that distributes mid-range energy evenly and in phase over the height of the cabinet. This matrix effectively reduces the acoustical source spacing to provide exceptional projection of mid-range frequencies. The matrix also shifts upper-midrange frequency output toward the center of the cabinet, which broadens the horizontal dispersion of the midrange frequencies.

This technology allows the MFLA to deliver coherent midrange propagation from a symmetrical 2-way design, which not only eliminates the phase offset, (or latency,) of a 3-way system, it also allows for higher midrange SPL and lighter cabinet construction. The shorter acoustical path of this system allows the high frequency lenses to be utilized for extremely wide horizontal coverage, often even eliminating the need for front-fills.

Integrated
Dampers

The rear output of the woofers enters a vented enclosure that features integrated damper structures that enhance midrange clarity along with extensive bracing for minimal resonance. The vents are perpendicular to the cone movement to further improve midrange clarity, minimize cabinet frontal area and to provide for wider horizontal coverage capability, all while they do their primary duty of delivering exceptional low frequency performance. Their location also provides the secondary function of ducting cool air directly over the low-frequency driver motors for reduced thermal compression and improved reliability.

They heard sounds in their music they’ve never heard before.

Nasty Nate

We recently did Council, an outdoor music festival in Austin TX. I had many DJs tell me how good the BASSBOSS system sounded. They said they heard sounds in their music they’ve never heard before. We had 3 stages running, and two of them had bigger sound systems that cost way more money. The BASSBOSS sounded much better!

All the money in the world couldn’t get you better sound.

Neil Heller

If you are looking to please your customers with pure sonic bliss, and the kind of bass that will get people talking about your rig, then look no further.

5-⭐️ treatment for sure!

Caleb Burton | Rize Entertainment-Texas

The entire BASSBOSS team has been great. David Lee took the time to speak with me at length by phone prior to my purchase, and his team has reached out to me since to check on things a few times. 5-Star treatment for sure.

Phase
Aligned

Fixed-Point Flyware ensures absolutely consistent box-to-box alignment. The high-frequency output of an array can only remain coherent at higher frequencies if the cabinets cannot move front-to-back once the pins are inserted. The MFLA’s unique precision alignment mechanism prevents movement in the direction that influences time domain alignment, front-to-back, which is critical to ensure the phase of the high-frequency signals remain coherent from box to box. This feature dramatically improves the very high-frequency propagation effectiveness of the entire array, allowing the MFLA to deliver pristine highs at greater distances.

Flyware
that’s fly

The MFLA Flyware features a simultaneous compression and tension mechanism, allowing the cabinets to be flown or ground stacked using the same simple setup. The proprietary flyware design ensures there is no slack and no shifting in the box alignment once the boxes are pinned. The mechanism allows for single-handed adjustment of splay angles for ground-stacked operation or in preparation for flying.

Tech Specs



Loudspeaker Description Horizontally Symmetrical Dual 12”, Self-powered, Vented Line Array element with Pressure-Phase Distributed midrange loading and isophasic high-frequency wave guides.
Frequency Response (±3 dB) 60-18,000Hz
Maximum Sustained Output 136dB
Max SPL (Peak)* 139dB
Nominal Dispersion (H° x V°) 120 x 10
Amplification 3000 Watt EIAJ Class D Amplifier
Processing Integrated Comprehensive DSP including High Pass, Low Pass, Phase Alignment, EQ and Limiting
Transducer (Low Frequency) 2 x 12 in. diameter (300mm) Neodymium motor woofer with 3.5 in. (88mm) voice coil, waterproof cone
Transducer (High Frequency) 2 x 1.4 in. (36mm) exit compression drivers with 3 in. (76mm) voice coils mounted to isophasic wave guides
Cabinet Construction CNC machined 15mm multi-ply laminate with extensive bracing and dado joinery. External flyware and linking mechanism
Dimensions (HxWxD) 16.125 in. x 40.5 in. x 20.375 in. (Including Flyware)
Net Weight 104 lbs
Shipping Weight 130 lbs



Loudspeaker, manual, and power cable included.



True Specifications

BASSBOSS technical specs are based on measurements of continuous performance in normal usage. Other manufacturers may specify output based on calculations rather than measurements; measurements outside the operating bandwidth; or on ‘Burst’ or ‘Peak’ readings.

BASSBOSS specifications are conservative compared to most manufacturers. They reflect what the products will achieve, consistently, in the real world. Since the real world is where you’ll be using your gear.

Our proactive philosophy causes specifications to be subject to change whenever improvements are made.

*Peak output is calculated using “industry standard” techniques. These calculation methods create theoretical specifications that are inflated over what can actually be achieved. BASSBOSS real world output specifications are provided as “Maximum Sustained Output” ratings, which reflect actual measured, continuous output levels.

Deep Dive

Hand-Built Cabinets

BASSBOSS cabinets are CNC machined and hand-assembled in the USA. Constructed from 15mm Baltic Birch plywood, using dado joints, screws and advanced composite adhesives. The cabinets feature integrated interior reflection and resonance control structures and are extensively braced. Created to stand up to intense use. The cabinets are finished in an extremely rugged, black polyurethane coating and feature polyethylene sliders, stainless steel fasteners and CNC machined, powder-coated metal suspension linkage. Rolling ground-support carts, heavy duty padded covers and road-cases are available to make transporting the arrays easy and safe.

BASSBOSS subwoofers are available to fly above or support below the MFLAs to extend system performance to well below 30Hz. The MFLA’s remarkable output can be combined with subwoofers for extended low frequency response and intensely high low-frequency output levels.  Several subwoofer options are available including 18″ and 21″ driver versions. Flyware-equipped subwoofers can be used as ground-supports for arrays of up to 6 MFLA boxes.

Integrated line array flyware. Adjustable in one degree increments from 0 to 10 degrees.

Prodigious Amplification

A 3000W RMS amplifier provides the MFLA with very high SPL capabilities and plenty of dynamic headroom. Low current draw and light weight relative to their output capacity means you can provide intense sound with less power and fewer boxes.

The comprehensive processing ensures consistent, undistorted high-SPL operation and maximum reliability. All the processing necessary for linear frequency response and phase coherent operation are pre-programmed into the DSP, delivering exceptional dynamic resolution and detail along with precise control. The proprietary processing programmed into the BASSBOSS MFLA provide the ease of plug-and-play operation and very simple and easy setups. You also get the peace of mind that comes from knowing that the multi-tiered limiters make the system virtually indestructible.

Rugged Drivers

Electrical power is converted into acoustical energy by a pair of 12″ neodymium motor woofers and a pair of 1.4″ throat neodymium compression drivers. The premium-quality 12″ drivers feature 3.5″ aluminum voice coils with a combined power handling rating of 2800W program.

High-intensity Neodymium magnets are lighter and provide higher efficiency so the result is a lighter and louder cabinet. An aluminum demodulating ring provides for increased high frequency response and reduced distortion. A ventilated voice coil gap improves cooling and reduces thermal compression.

The cones are waterproofed to protect them from possible accidental exposure to moisture or rain.

High frequencies are handled by two 1.4″ throat Neodymium compression drivers featuring 64mm aluminum voice coils and Titanium diaphragms mounted to two cast aluminum isophasic wave guides that provide 120 degree horizontal dispersion and are protected from the elements by a hydrophobic screen.

Waterproofed cones are included in all products. Optional weather resistant and fully weatherized versions are available which have the same acoustical performance as our standard options. If your portable system is likely to be exposed to rain, ask about IP rated amplification options. If you have need of a system for outdoor installation, ask about Weatherized products. Weatherized versions are modified and treated to survive permanent exposure to the elements.

Focused Tuning

BASSBOSS speakers can be connected directly to your mixer with nothing but signal cable in between. The built-in processing is comprehensive and includes all necessary high-pass and low-pass filters along with equalization and phase alignment processing to ensure coherent response when deployed with BASSBOSS subwoofers.

There is no need for any additional EQ in the signal path for the speaker to provide a broad, flat frequency response. Sophisticated DSP programming ensures the speakers deliver consistent sound quality no matter the input level.

Plug-and play with peace of mind. Multiple, sophisticated protection systems make the loudspeaker virtually indestructible. You can turn on and turn up, all night, without fear of over-driving to the point of damage.

Videos

YouTube player

Financing

Finance a dream system.

Easy monthly installments to get you booming NOW.

CONSUMER FINANCING

To use SPLITIT - Add to cart and checkout, choose Splitit at payment section. Questions? Give us a shout.



Shop again and again at thousands of participating retail locations, for your audio & home needs.*

  • Promotional financing offers** with convenient monthly payments
  • A dedicated credit line for home purchases (flooring, furniture, appliances, electronics and more)
  • No annual fee for new accounts
  • Special sales events and savings offers* from participating retailers
  • $0 fraud liability
  • 24/7 secure, online account management tools

*Subject to credit approval **Participating locations

✛ Synchrony Home Offer - cannot be combined with any other offers or prior quotes, interest is deferred during the promotional period, the entire finance amount must be paid by the end of the promotional period to avoid finance charges, not valid on dealer sales, additional terms and conditions may apply. Please contact our sales team for details and sales assistance.

PRO AUDIO FINANCING

BASSBOSS offers financing for audio professionals with a business license through industry leader Hampton Ridge Financial

• Financing for equipment purchases of $500+
• Any business/organization can qualify, including Start-ups
• Positive credit history with a 600+ credit score can qualify

Production Subs

Mobile Subs

Production Tops

Mobile Tops

Shop

Kraken

Quad 21" Subwoofer

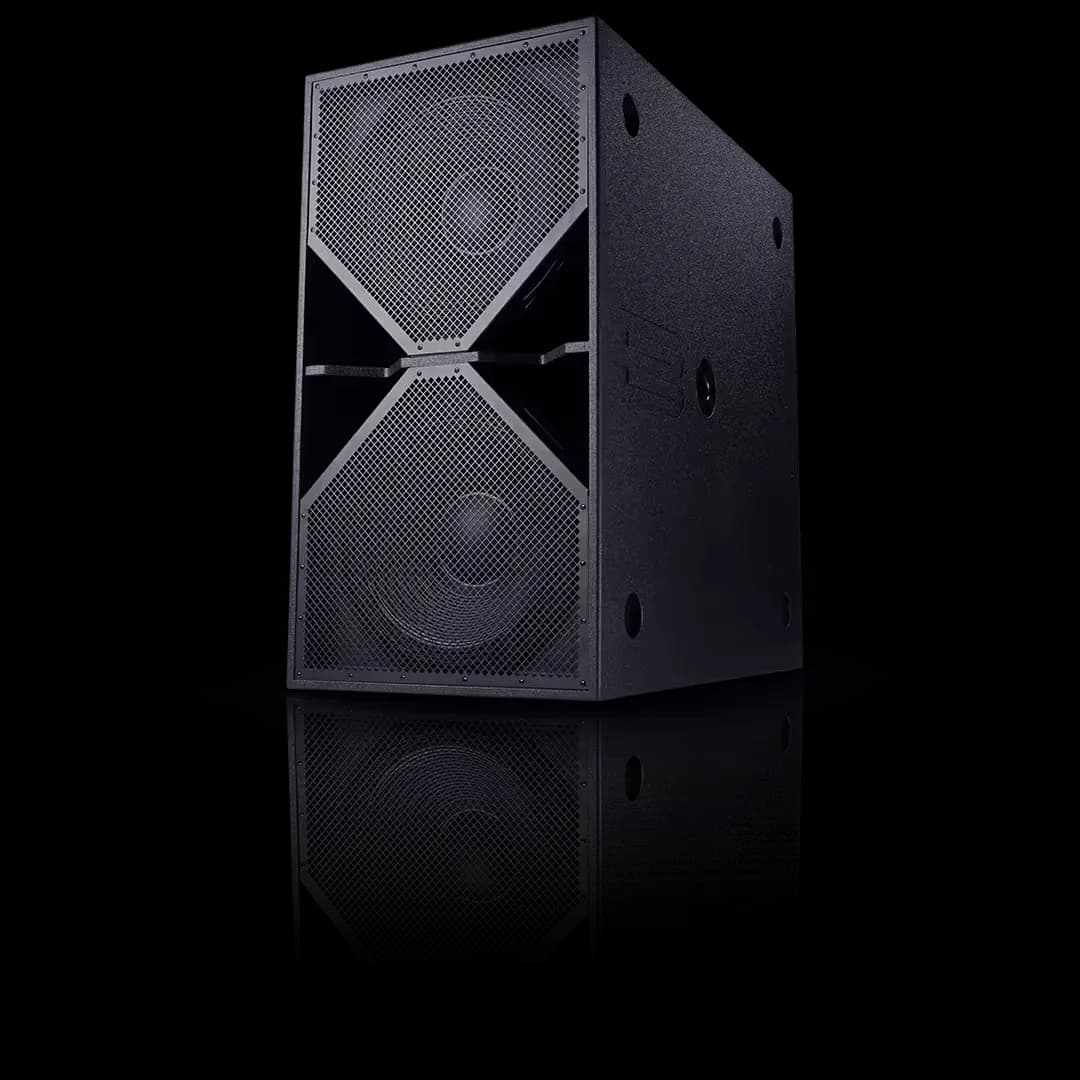

BASSBOSS ZV28-MKII Powered Subwoofer

ZV28-MKII

Double 18" Subwoofer

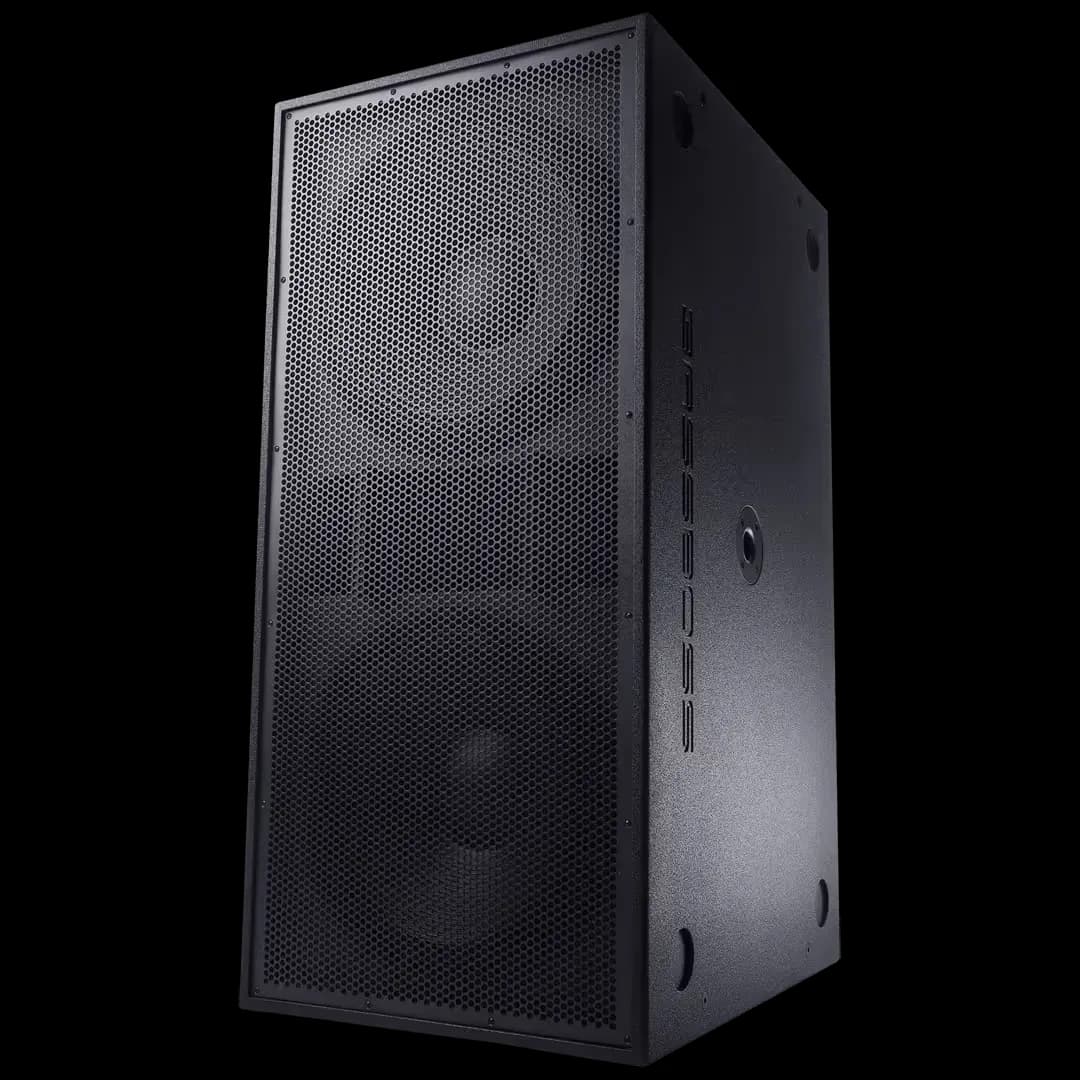

BASSBOSS SSP218 Powered Subwoofer

SSP218

Double 18" Subwoofer

SSP215-MKII

Double 15" Subwoofer

VIEW ALL

VS21

Single 21" Subwoofer

SSP118-MKII

Single 18" Subwoofer

BASSBOSS DJ18S Powered Subwoofer

DJ18S

Single 18" Subwoofer

BASSBOSS BB15 Powered Subwoofer Hero

BB15

Single 15" Subwoofer

VIEW ALL

MFLA

Dual 12" Line Array

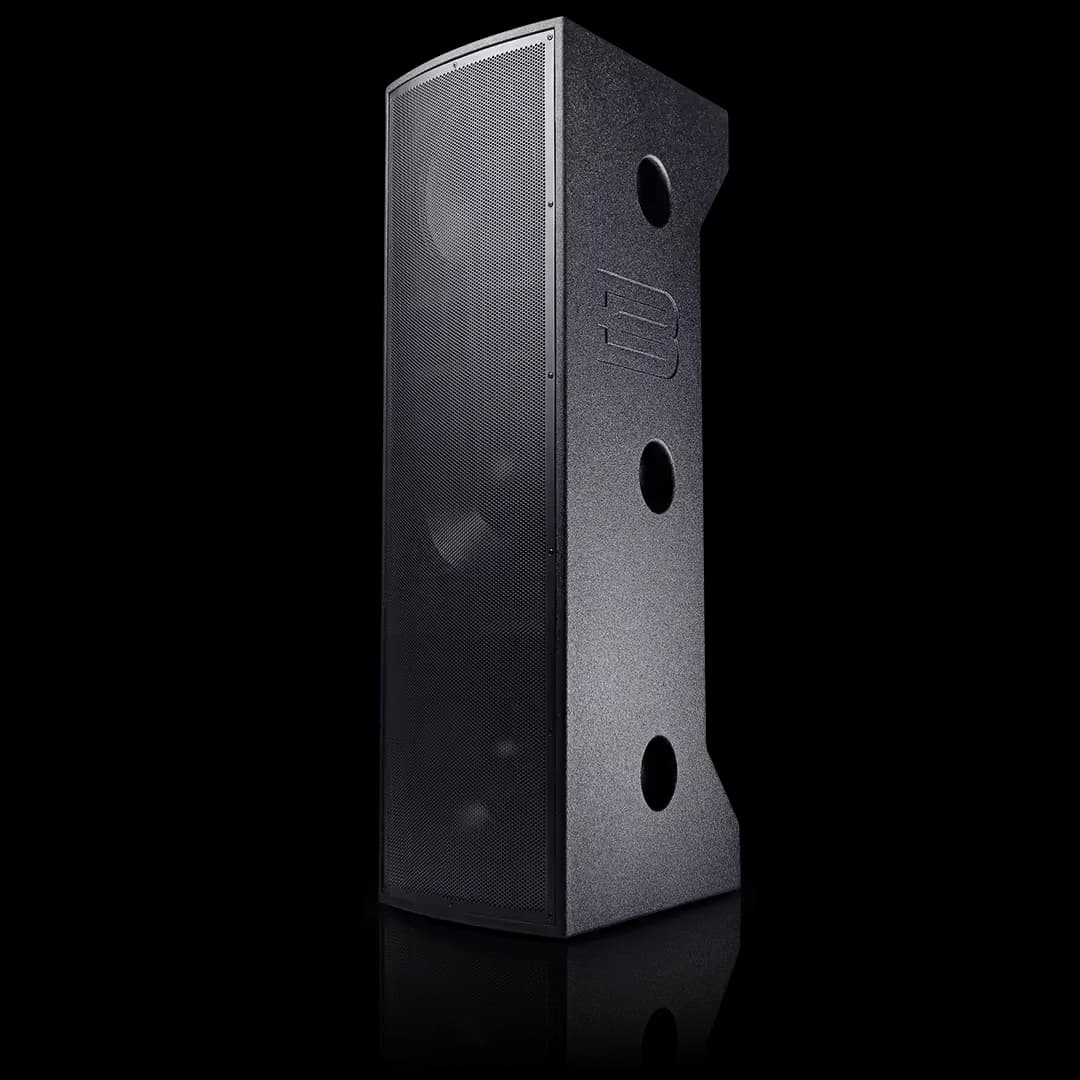

BASSBOSS AT312 Powered Top Loudspeaker
