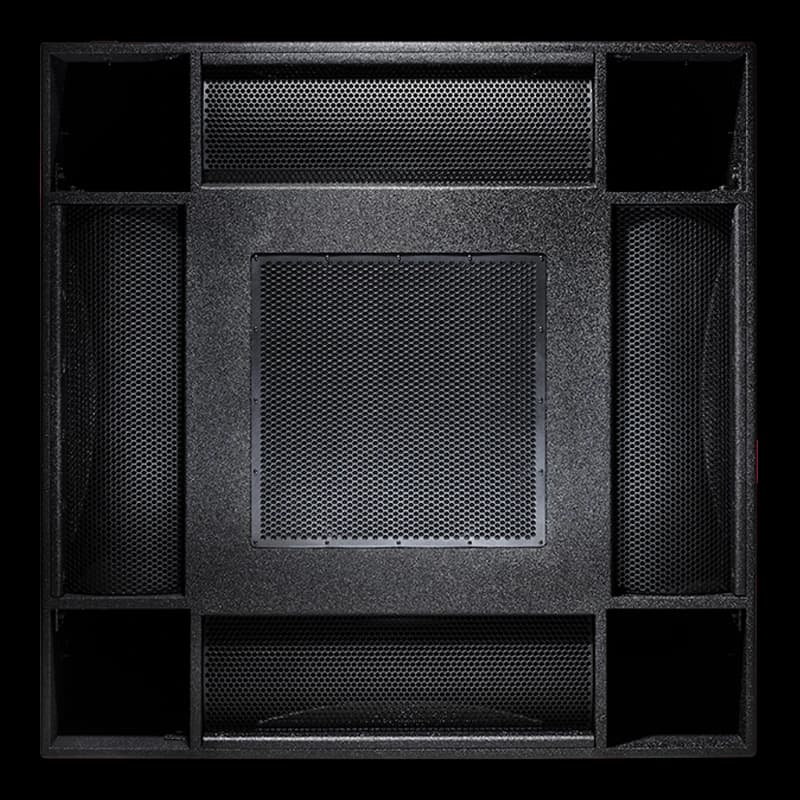

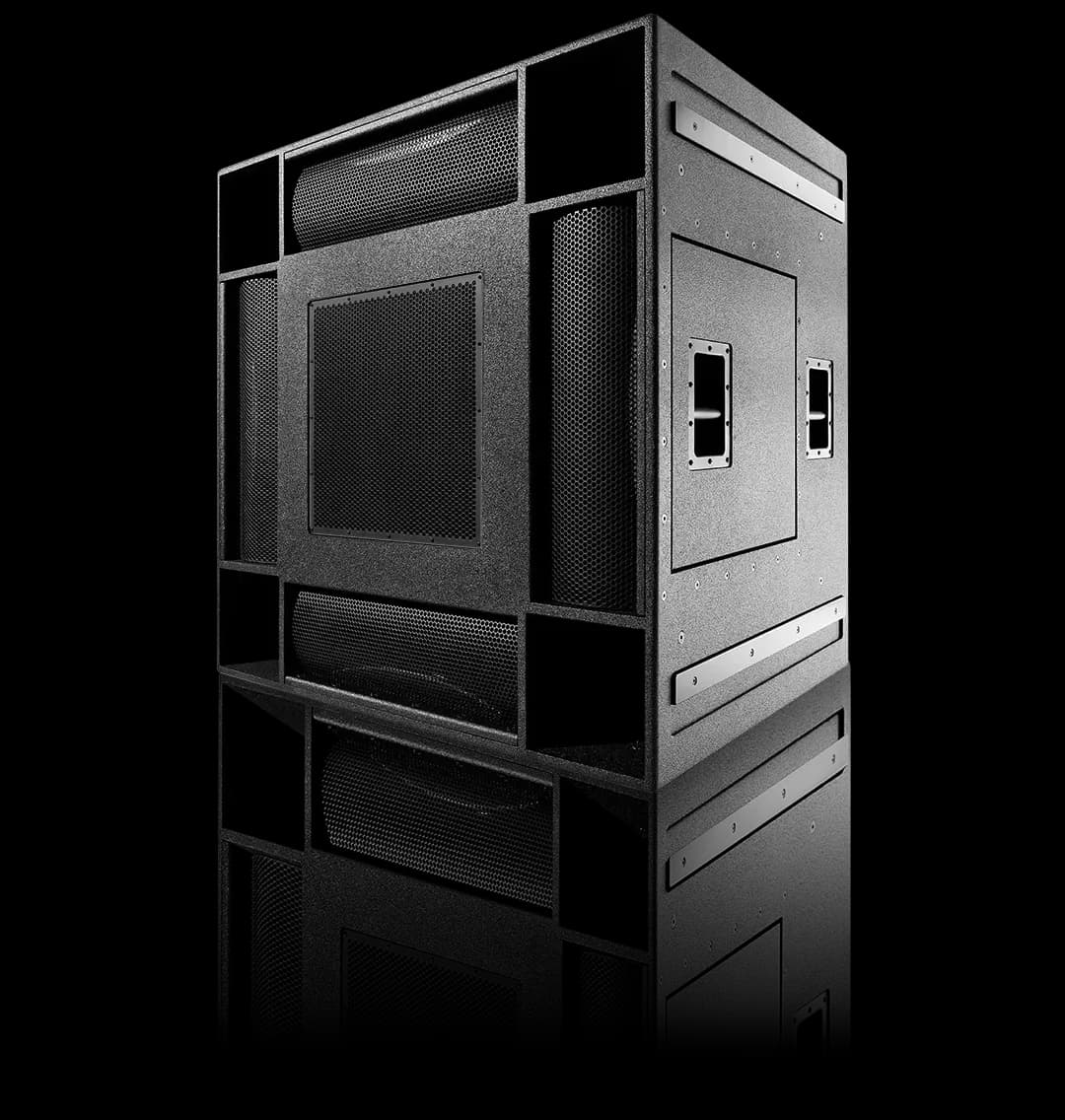

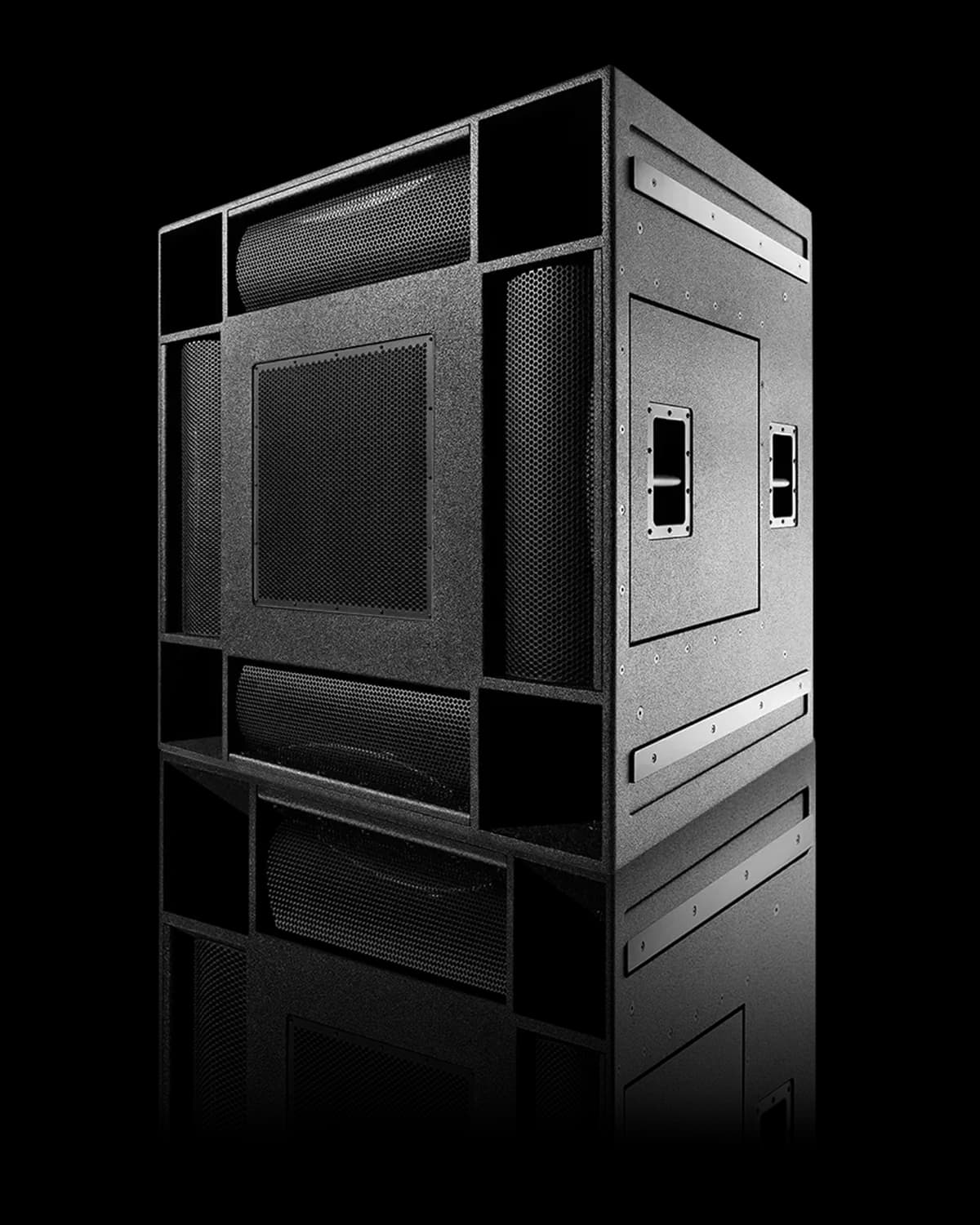

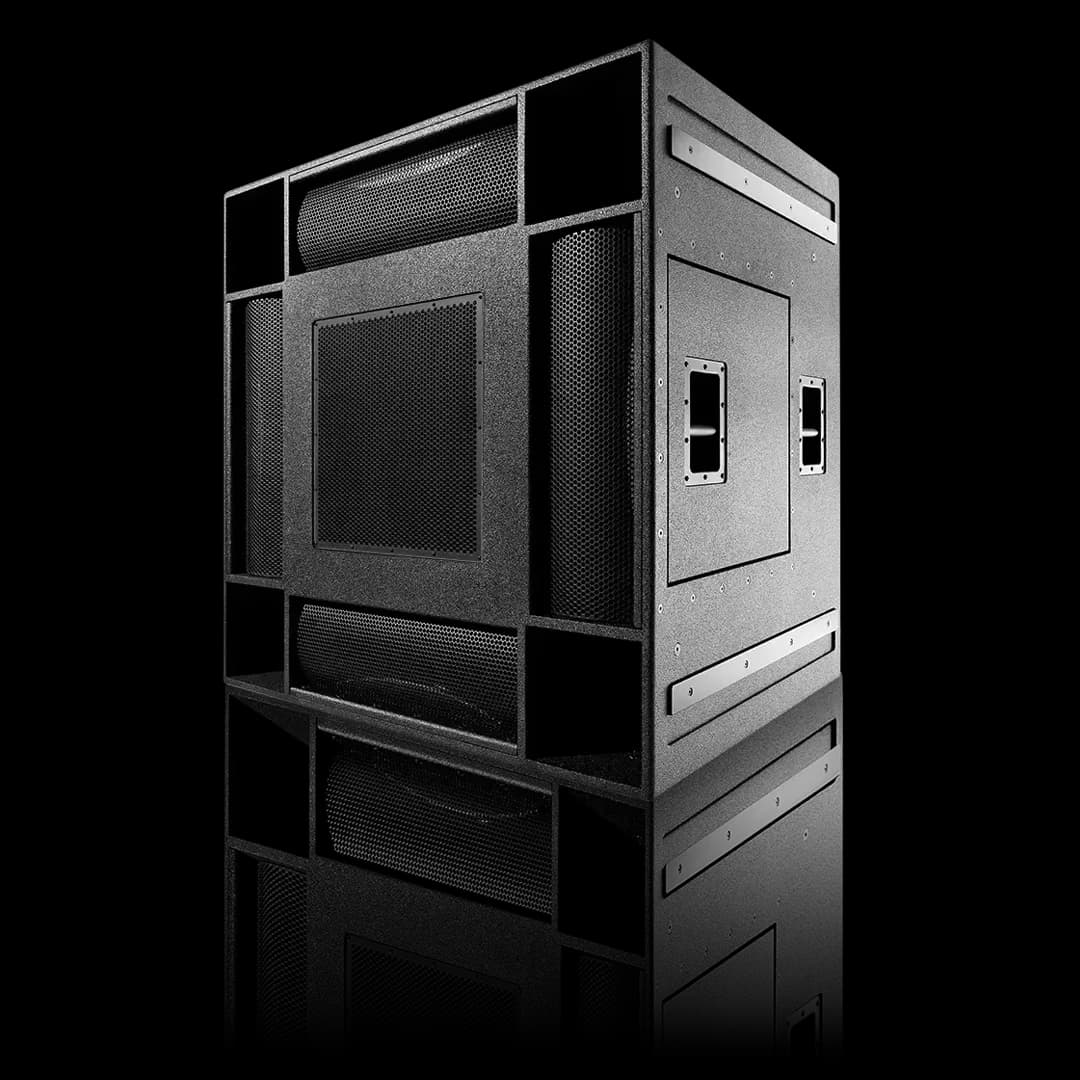

Krakatoa
Quintuple 18″ Powered Point Source Full Range
7500W
Total Amplification
142dB
Sustained Output
25Hz
Low extension
5×18″
Neodymium drivers
The whole spectrum.
One point.
Kicks Some Serious Ash.
Four 18″ subs in a sixth-order band-pass enclosure. An 18″ mid-bass driver in a sealed enclosure. A co-axial compression driver right through the middle. One cabinet. The whole frequency range.
Seismic Sound.
Single concentric point source: every driver firing from the same axis. Phase interference practically eliminated. The most immersive listening a single loudspeaker can produce.
Volcanic Volume.
4-way design: dedicated drivers per frequency range. Low distortion, balanced output even at peak SPL. Hear every note at every volume.
7,500W. Never the bottleneck.
Auto-sensing 90–250V universal supply. Passive cooling through external heat sink and woofer airflow. Four radial fans engage only when conditions demand.
Built to outlast the gig.
CNC-machined 18 mm Baltic Birch, dado joinery, polyurea finish. 16 M10 fly points. UHMW Polyethylene sliders on every face for ground stack and transport.
The Stackatoa system.
Pair with Makara + Kraken for the complete Stackatoa dance stack: six 21″ subs + four 18″ + 18″ mid-bass + co-axial mid-high. 12 sq ft of floor. 10′4″ tall.
60° × 40°
point source control.
60° horizontal × 40° vertical (25° down, 15° up). A single concentric point: no phase interference between drivers, no comb filtering between cabinets. Imaging is precise from every seat in the coverage area.
60°
Horizontal
40°
Vertical (25° down · 15° up)
Seismic Sound.
Krakatoa Quintuple 18″ Powered Point Source Full Range full product walkthrough.
Diving Deep with the Fam.
Aldo Vlogs
Aldo Vlogs
Hands down, I was there yesterday at NAMM—it was insane! The demos were next-level. This setup isn’t for the average listener—it's on a whole different plane compared to even top-tier systems. David is absolutely wild! The kicks hit so low and hard, you can literally feel your blood moving through your chest. It was unreal… I’m still dizzy from it! 😂
DJ Hatcha
DJ Hatcha loves this system
I love this F'ing System. Dubstep for Life. (Written on the SSP218 subs at nightclub Barcelona Austin!)
DJ Morgan Page
DJ Morgan Page
Shoutout to @bassbossbass for the amazing low-end last night @KingdomAustin– that’s how you do it!
Darren Bianco
Darren Bianco
This is probably the ultimate speaker setup. I’m opening a live music venue in Thailand next year, and BASSBOSS is definitely the system I’m going with. Planning to start with two ZV-28s and two DV-12s, and hopefully add a pair of 21s down the line. As much as Krakatoa setup is my dream, it would probably blow my customers straight out of the bar—right into the one across the street! 😂 Absolutely love it.
The All New
ControlBASS
With ControlBASS, any laptop becomes a full system controller over standard Ethernet. Monitor, tune, and recall presets, without touching a cabinet. Free for macOS and Windows.
Coming soon: an all-new GUI and 15 onboard provided presets, with the ability to save 85 more custom presets.
The All New
ControlBASS
With ControlBASS, any laptop becomes a full system controller over standard Ethernet. Monitor, tune, and recall presets, without touching a cabinet. Free for macOS and Windows.
Coming soon: an all-new GUI and 15 onboard provided presets, with the ability to save 85 more custom presets.
→
Real-time remote control
Adjust gain, EQ, and delay without touching a cab.
→
Live system monitoring
Track levels, temperatures, and gain reduction across every unit.
→
100 stored presets
Now with up to 15 on-board presets, accessible from the amp.
Getting Deep
Real events. Real eruptions.
Specs
+ Resources
Acoustical
| Loudspeaker Type | Self-powered full-range point source system |
| Frequency Response | 25–19,000 Hz (±3 dB) |
| Max Sustained SPL | 142 dB @ 1m half-space |
| Peak SPL | 145 dB @ 1m half-space |
| Dispersion | 60° × 40° (25° down, 15° up) |
| Transducer LF | 4 × 18″ (450mm) neodymium woofers · 4″ voice coils · waterproof cones |
| Transducer MLF | 18″ (450mm) neodymium mid-bass driver · 4″ voice coil |
| Transducer HF | Co-axial compression driver: 4″ ring diaphragm midrange + 2.5″ ring diaphragm tweeter · 2″ throat horn |
Amplifier / DSP
| Total Amplification | 7,500W Class D |
| LF Amplifier | 5,000W |
| MLF Amplifier | 1,600W |
| DSP | 96 kHz sampling · 8 pushbutton presets · 100 presets via ControlBASS |
| Voltage | 100–240V AC, 50–60 Hz (auto-sensing universal supply) |
| Current Draw | 13.75A nominal @ 120V / 7A nominal @ 240V |
| Cooling | Passive (heat sink + port airflow) · 4× radial fans on demand |
Connections
| Signal Input | XLR-F balanced |
| Signal Output | XLR-M (direct pass-through only) |
| DSP Control | ControlBASS software (macOS / Windows) |
| Network (×2) | Ethernet: ControlBASS + LAN preset loading |
| Mains Plug | NEMA 5-15 (USA) · Alternate connectors provided outside USA |
| Max Cable Run | 100m per AVB segment |
Physical
| Enclosure | 6th-order vented short-horn LF · sealed mid-bass · co-axial horn-loaded MHF: CNC-machined 18mm Baltic Birch plywood · dado joinery · extensive bracing |
| Fly System | 16 × M10 fly points |
| Handles | 8 steel bar handles |
| Sliders | 8 interlocking UHMWPE sliders |
| Finish | High-pressure bonded polyurea · rugged, waterproof, textured black |
| Grille | Perforated powder-coated steel |
| Dimensions (H×W×D) | 48″ × 48″ × 36″ |
| Net Weight | 470 lbs (213 kg) |
| Shipping Weight | 560 lbs (254 kg) |
Included / Optional
| What's Included | Loudspeaker · 15' (5m) Power Cable · Manual · Warranty Card |

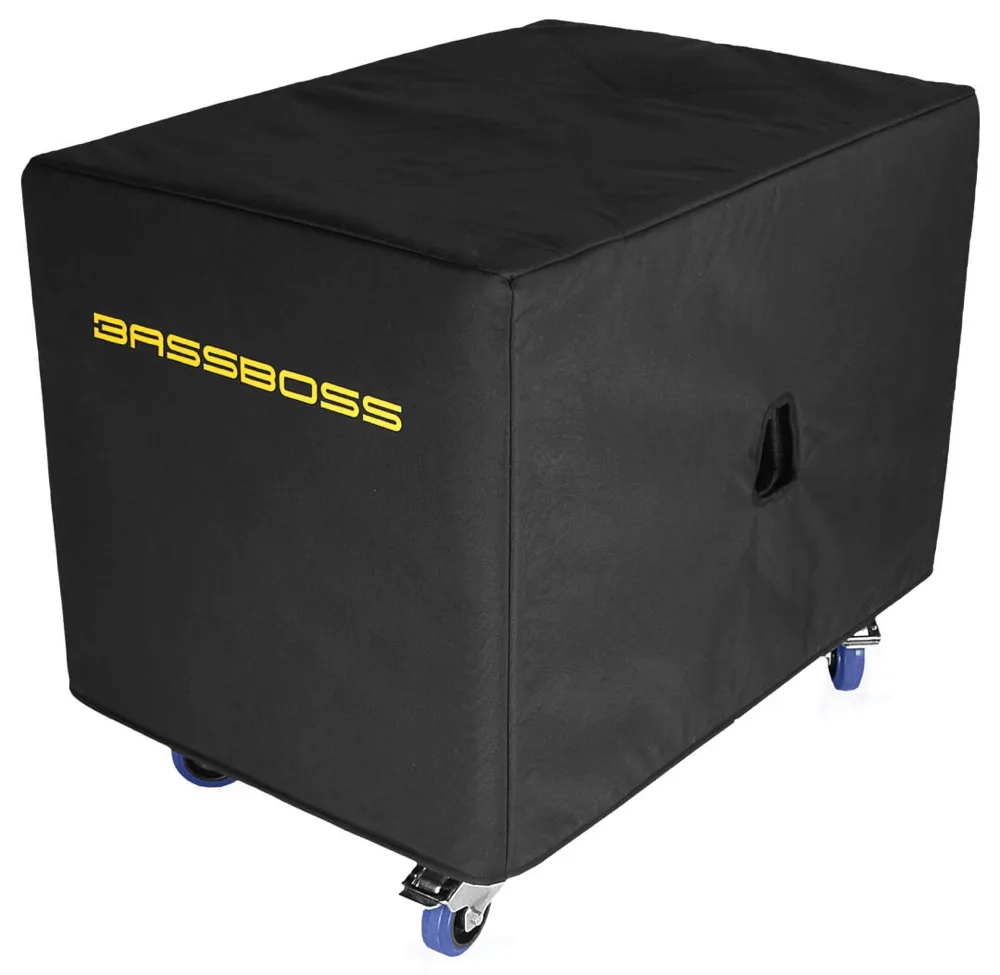

| Optional Cover | Heavy-duty padded nylon transport cover |

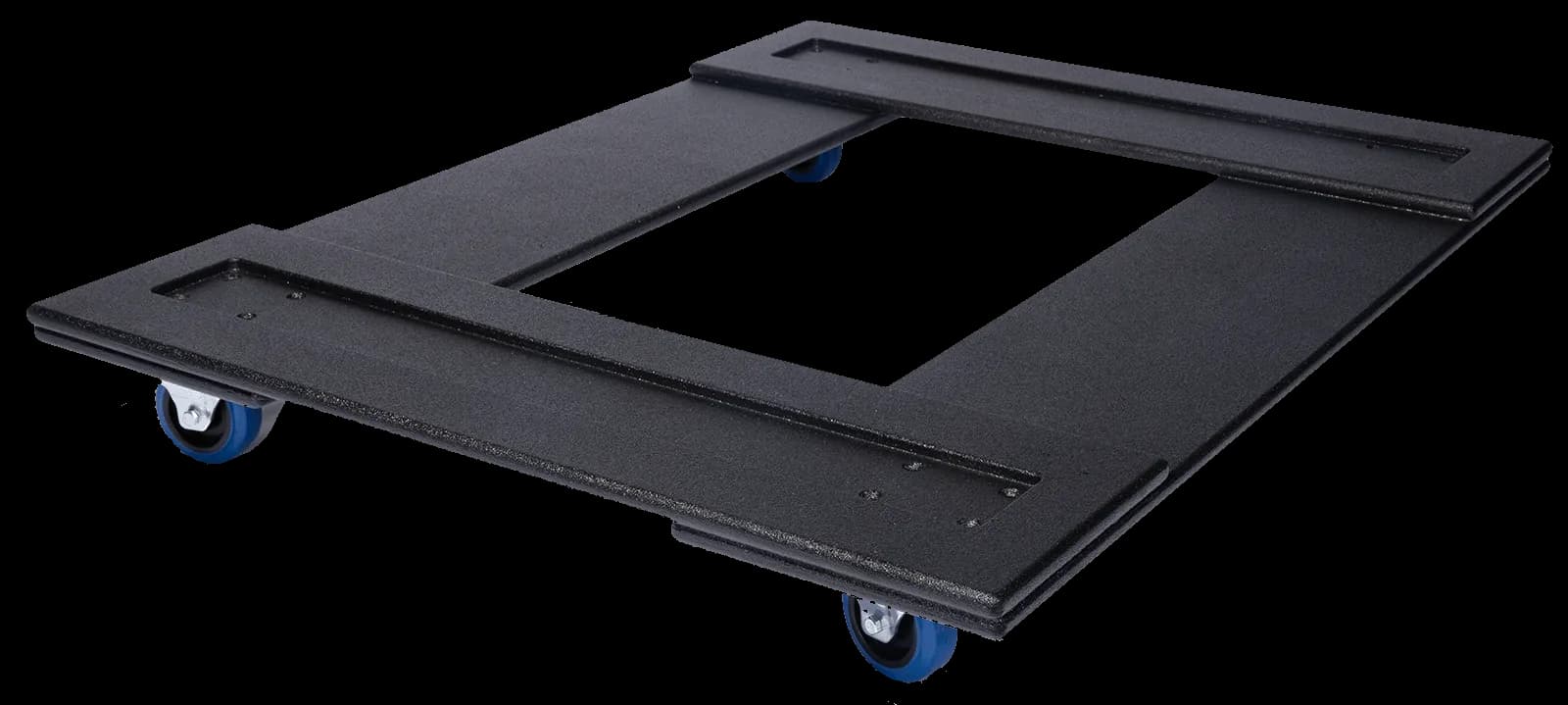

| Optional Cart | Birch plywood flat cart with 4 locking wheels: transports 1 or 2 cabinets |
| Optional Hardware | M10 Shoulder Eye Bolts · M10 Side-Pull Anchors |
Full Range.
See how the Krakatoa compares to the rest of the BASSBOSS full-range product line.
Sublim8
Column loudspeaker system
- LF35Hz - 19,000Hz
- SPL133 dB
- AMP4,000 W
- DRVSingle 18″
This Model
Krakatoa
Quintuple 18" powered point source
- LF25 - 19,000Hz
- SPL145 dB
- AMP7,500 W
- DRVQuad 18″
Stackatoa
Point source dance stack system
- LF—
- SPL—
- AMP—
- DRV—
8 presets.
Instant recall.
Factory-tuned for every deployment. Each preset switches in real time with no dropout. Up to 100 stored over the network.
- →Hover to read exact Hz and dB values
- →Up to 100 stored presets via ControlBASS
- →Special presets for stacked / cardioid use
PRESET 01
Full Range
30 Hz HPF (Butterworth)
01
02
03
04
05
06
07
08
8 presets.
Instant recall.
Factory-tuned for every deployment. Click a preset and the curve updates in real time. Hover to read exact Hz and dB values.
PRESET 01
Full Range
30 Hz HPF (Butterworth)
Flat reference: natural, balanced reproduction
CB
Up to 100 stored presets via ControlBASS
Manage, name, and recall: all over Ethernet.
Select a preset
Preset 08: Cardioid Mode
Eliminate
stage bleed.
Cardioid Mode turns two stacked ZV28s into a directional low-frequency system. The DSP handles delay and polarity automatically. The rear lobe cancels itself out.
01
Position two subs
One forward-facing, one rear-facing directly behind it.
02
Select preset 8
One-touch activation: DSP handles delay and polarity.
03
Rear null engaged
Stage stays clean. FOH gets all the power.
Popular
Systems.
The Krakatoa in complete systems: subs and tops, dialed in and ready to go.
Stackatoa Foundation

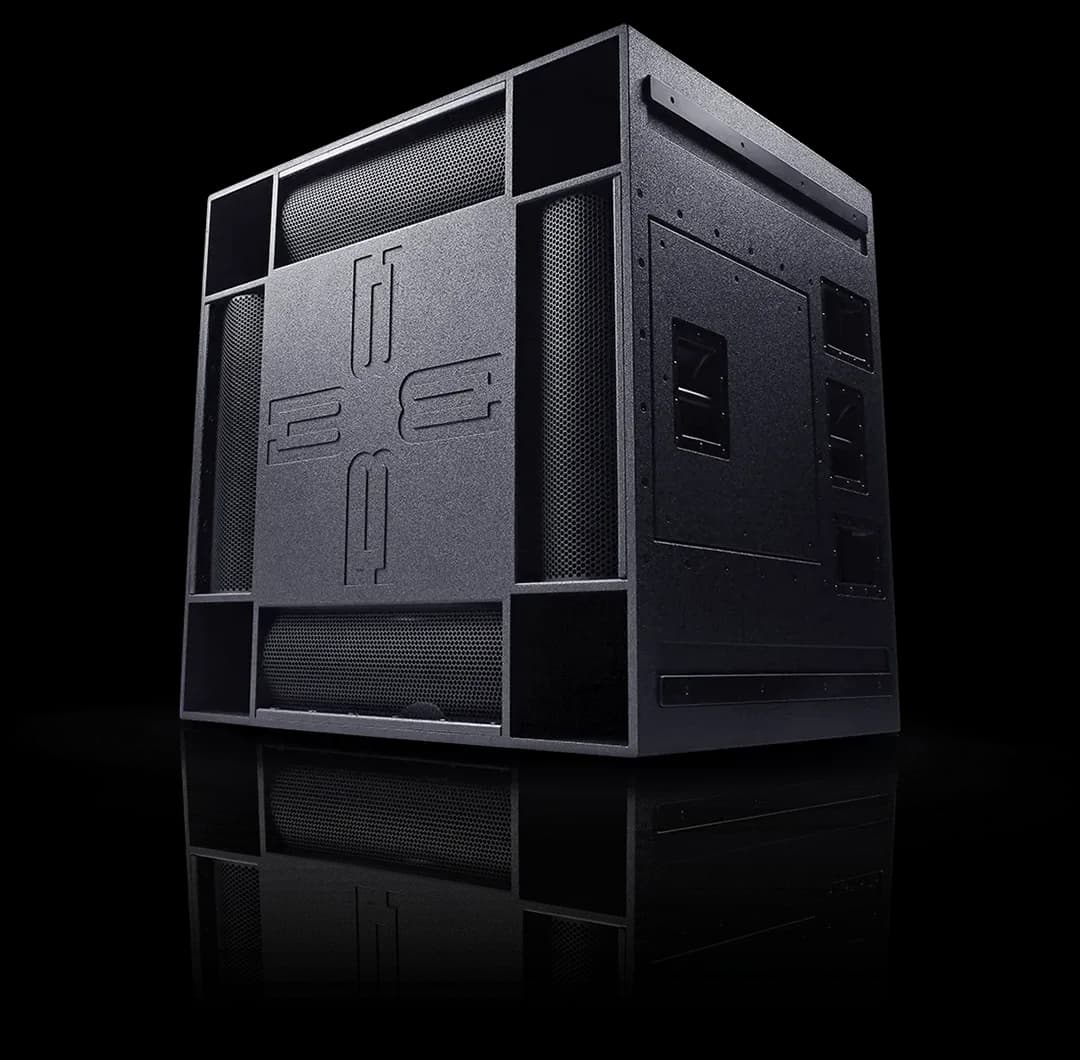

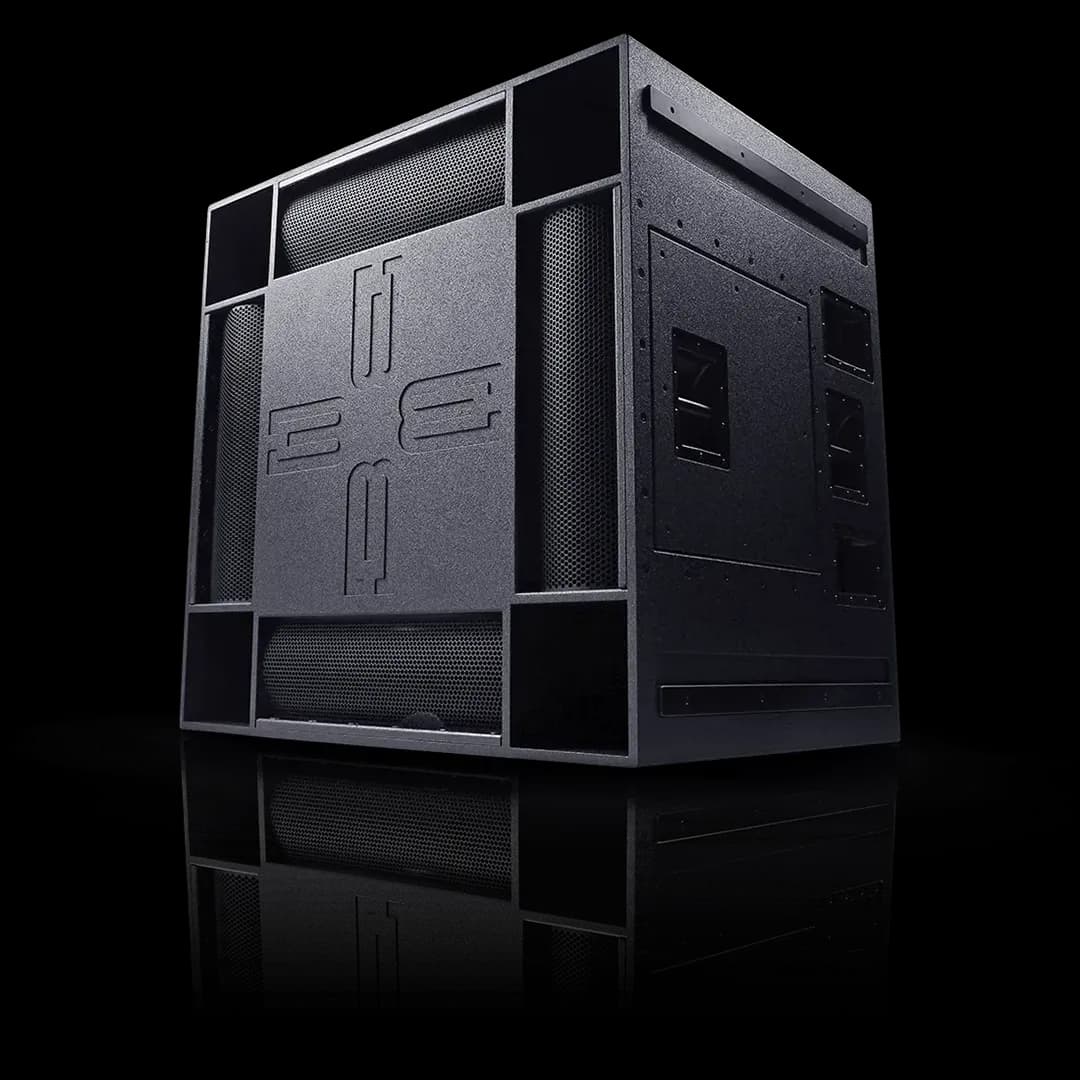

Kraken-MK3
Quad 21″ powered subwoofer
Four 21" subs beneath the Krakatoa. The bottom half of the Stackatoa: seismic low end that the Krakatoa can ride on top of.
View Kraken-MK3 →
Stackatoa Mid

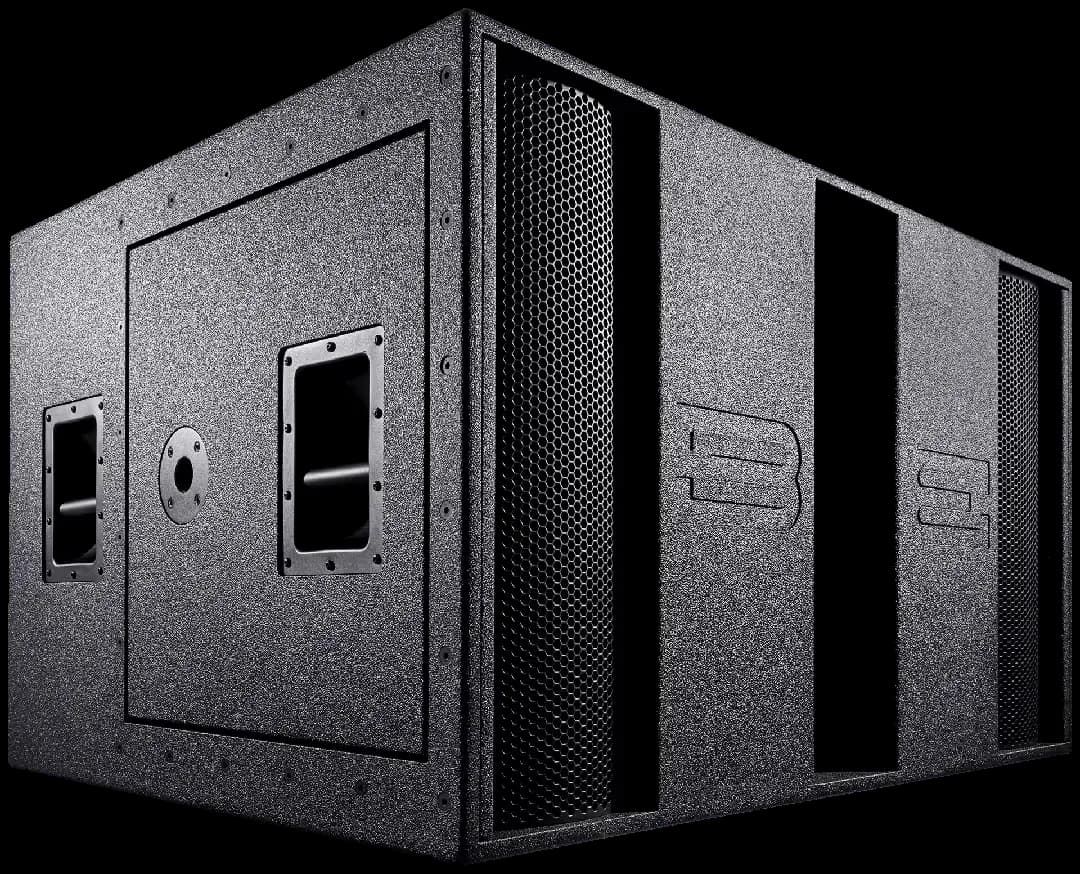

Makara-MK3
Double 21″ powered subwoofer
Two 21" subs bridging the Kraken and the Krakatoa. Add all three and you have the complete Stackatoa dance stack.
View Makara-MK3 →
Versatile Complement

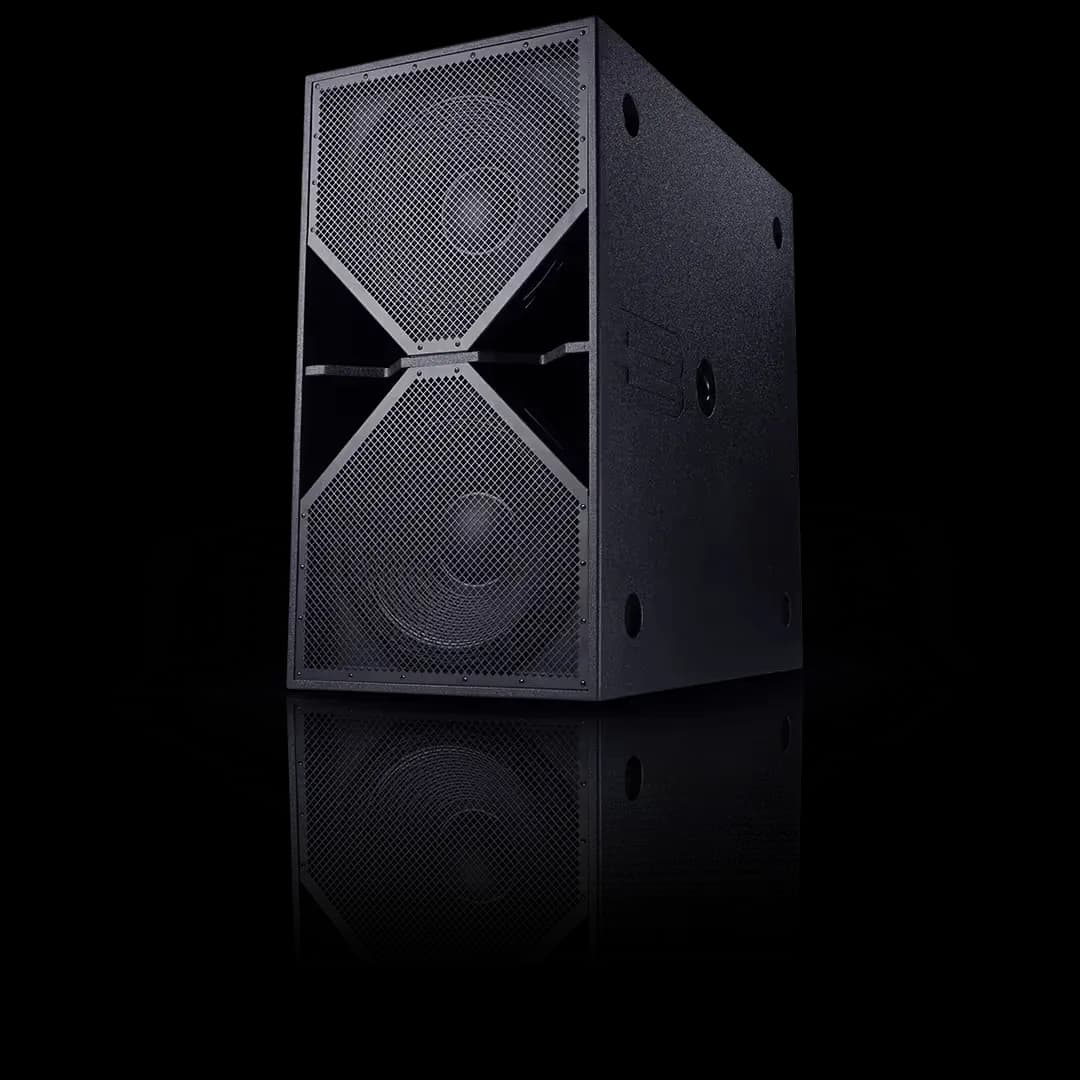

ZV28-MK3
Dual 18″ powered subwoofer
When you need extra sub weight without committing to the full Stackatoa. Two 18" drivers to reinforce what the Krakatoa already handles below 60 Hz.
View ZV28-MK3 →
