SHAKE THE PLACE
BASS

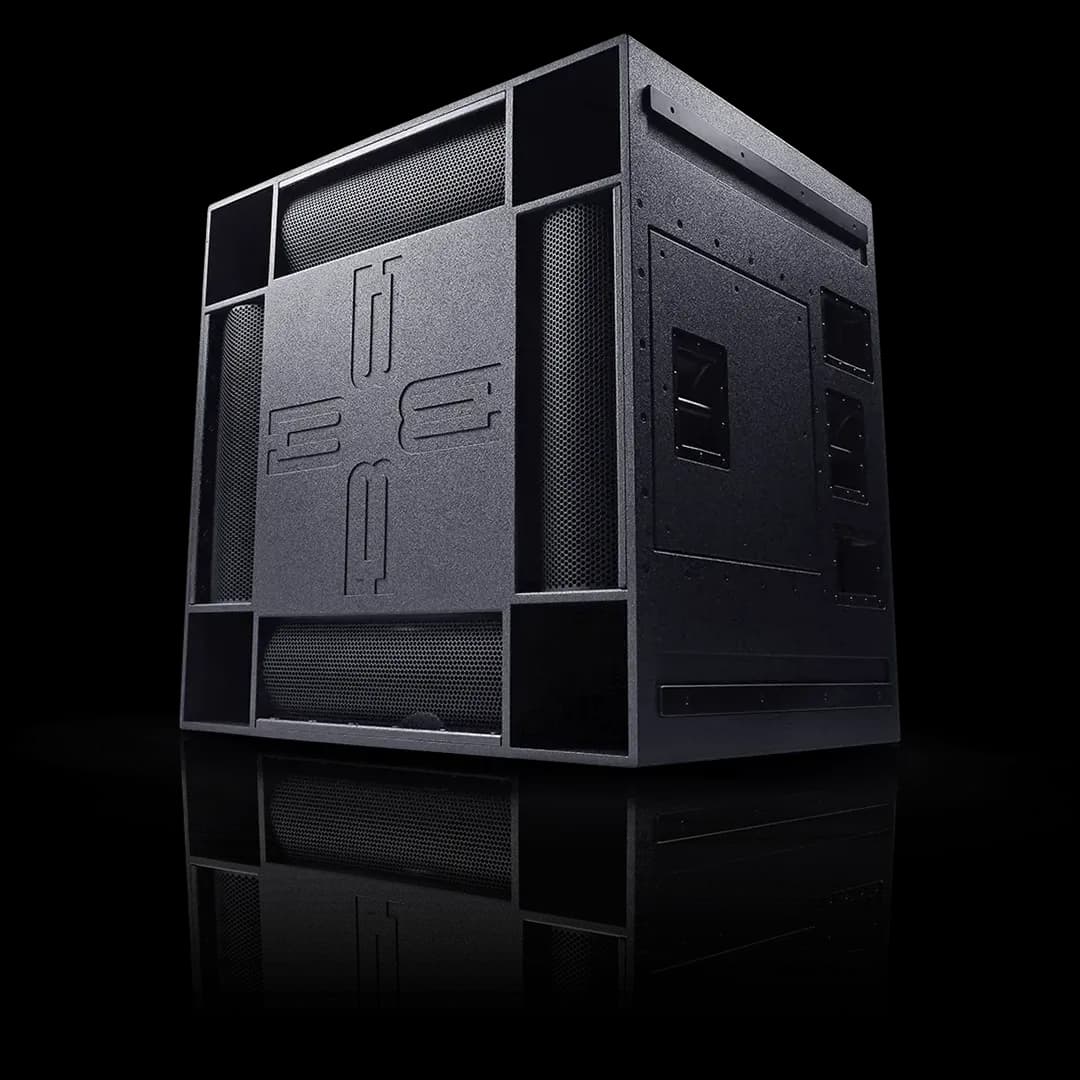

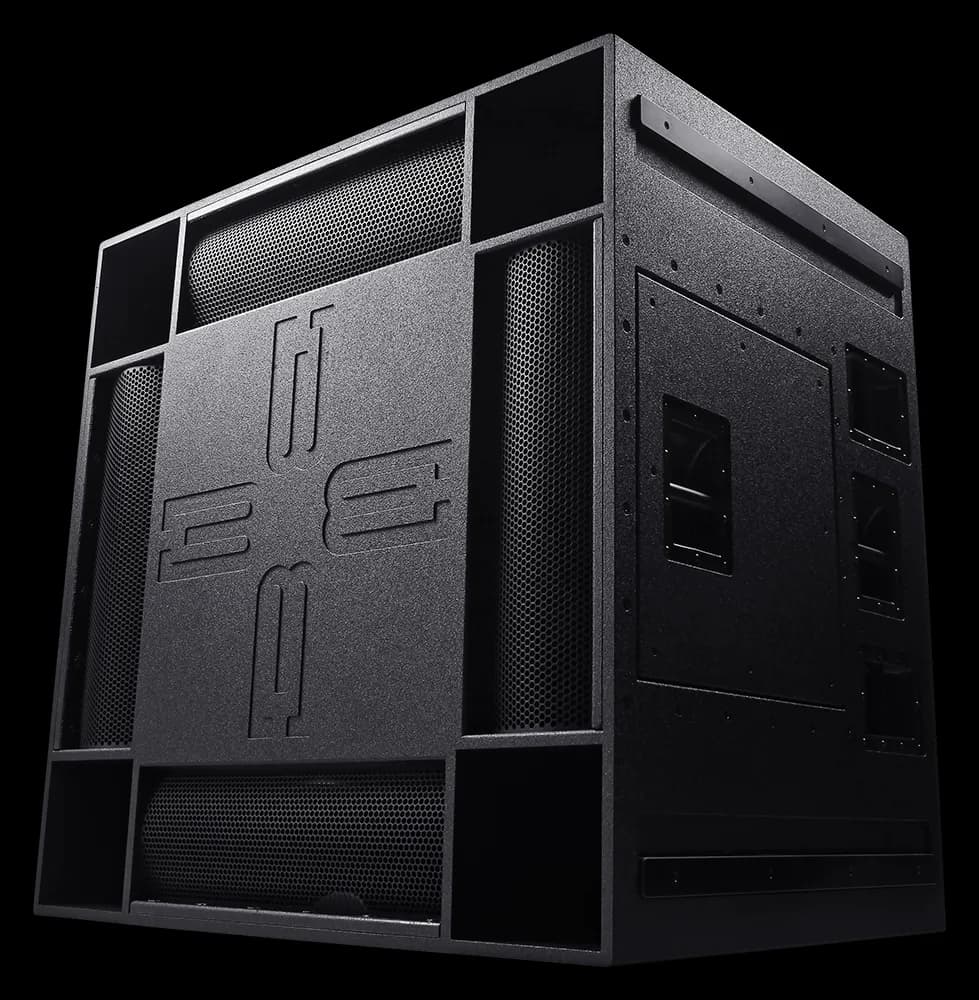

Kraken-MK3
Quad 21″ Powered Subwoofer
10000W
Class D Amplifier
145dB
Max Sustained SPL
27Hz
Low extension
4×21″
Neodymium woofers
Built for
these gigs.
Bass you can swim in, but you might get eaten.
Kraken-MK3 is the answer.
Different gig? We'll point you to the right sub.
Use Kraken-MK3 for
- Stadium / arena mainstage
- Large festival headline systems
- Major touring production
- Flagship club installs
Crushing, inescapable,
monstrously beautiful.
Release the Kraken.
Four 21″ neodymium drivers and 10,000 watts: the most powerful subwoofer system we've ever designed. The sub you bring when the field needs to shake and the front row needs to feel it in their chest. There is no comparison for sheer output-to-size ratio.
Massive headroom.
10,000W across four discrete 2,500W channels: each driver gets its own, reducing thermal load. Higher rail voltages slam the peaks while sustained output keeps the low end liquid.
The secret ingredient is powerful DSP limiting.
Five limiters work in concert, including thermal, excursion, and clipping, each protecting the drivers differently. Built so deep into the DSP you'll never catch them working: the drivers take everything you throw at them while the transients stay clean. Push it stupid-loud and it stays bulletproof.
Parties anywhere, in any weather.
An auto-sensing 100–240VAC power supply delivers reliable performance worldwide, and a high-pressure polyurea shell with IP65-rated connectors keeps the electronics safe from the elements. Plug in anywhere, play anywhere.
Eight handles. Sixty years of plywood science.
CNC-machined 18mm Baltic Birch with dado joinery and pervasive internal bracing, wrapped in impact-resistant polyurea. Eight steel bar handles and interlocking nylon sliders for ground-stack precision. Built to still be working the day you retire.
Twenty-one presets on the box. Up to 100 in the app.
96 kHz DSP with 21 onboard presets, switchable in real time, plus storage for up to 100 over the network with ControlBASS. Dial in your repeat venues once, save them, and every setup after is quicker.
Take a dip.
Kraken-MK3 Quad 21″ Powered Subwoofer full product walkthrough.

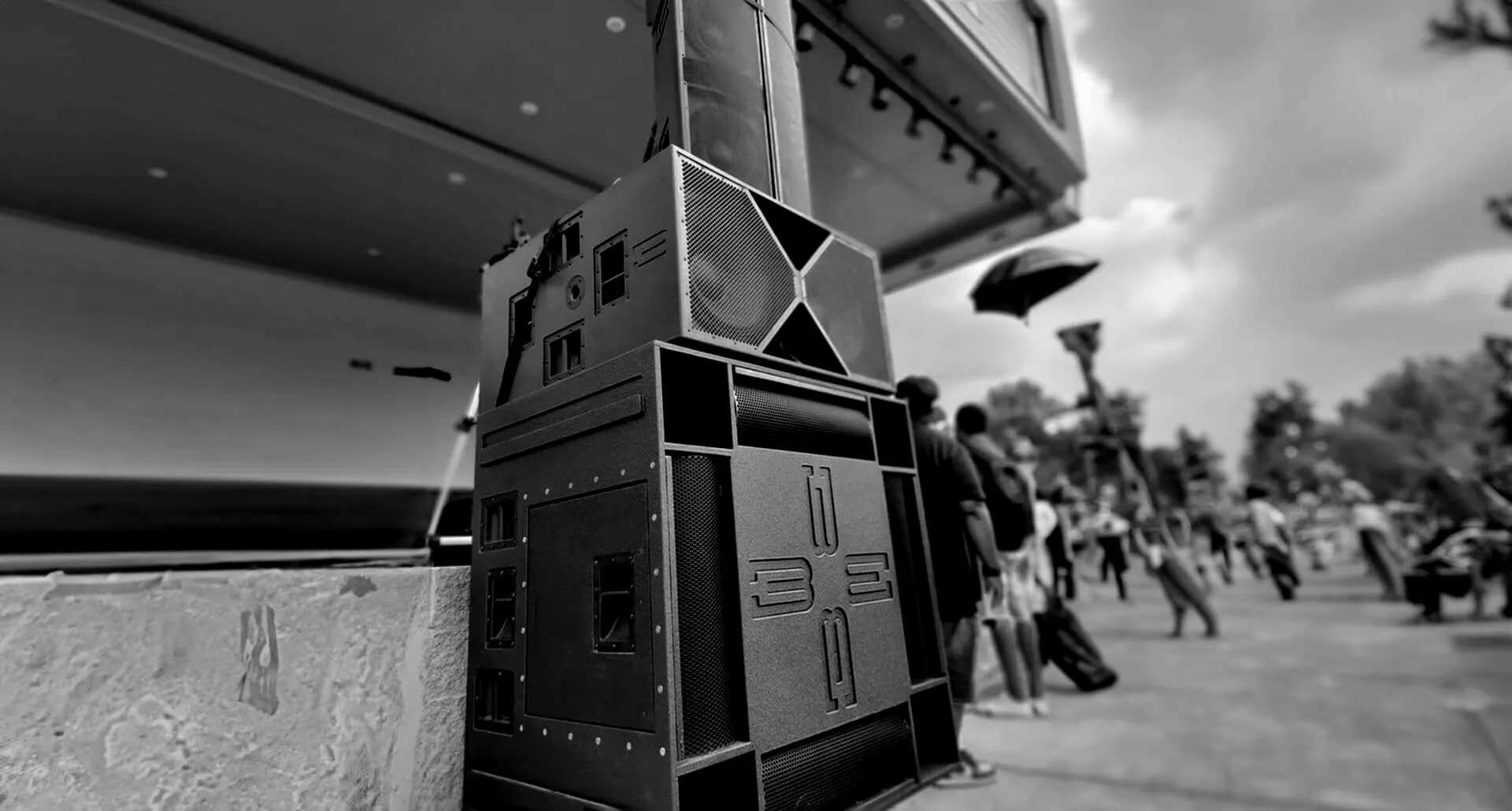

Getting Deep
The Kraken-MK3 in its natural environment –
stadium mainstages, flagship touring rigs, and anywhere the brief says "more bass than anyone has heard before."
Diving Deep with the Fam.
Adam Paz
For those small, intimate gigs—no more than 200 people—I’ll often choose between rolling out 2 ZV28s or 2 Krakens, running them at just 60%. Since I lay the ZV28s on their sides, the footprint is practically the same either way. And man, they sound so good even at 60%. I didn’t even turn the Diamons all the way up because the space was so small, but I still had plenty of headroom to drop some massive low end when the moment called for it. Those drops… when I gave it a little extra power—the look on people’s faces was priceless. Smiles all around.
Honorable C Note
Producer
I want to mix all my music on The Kraken.
Akinobu Tokuda
Owner | DRONEWRAP Janan Int’l
This is a wonderful equipment for DJ! It is playing the low range that can not be compared with other subwoofers. It surpasses Martin’s triple 15-inch woofer and two 18inch L-Acoustics subs. I can listen to the sounds that I could only listen to at the concert venue in my room. My friends call me crazy, but the music is asking for it. (Translated from Japanese by Google)
Anthony La Barbera
Love mine! I have 4 ZV28s and they are silly https://www.instagram.com/p/CdObovArL5B/... last slide has a video of thesub-setup
Get
Deep.
Kraken-MK3
Quad 21″ Powered Subwoofer
- 10000 W Class D Amplifier
- 145 dB Max Sustained SPL
- 27 Hz Low extension
- 4×21″ Neodymium woofers
Retail
$17,995USD
Finance It Buy now, pay over time* with Synchrony. *Subject to credit approval. Apply Now Lease-to-own also available through Hampton Ridge Financial.

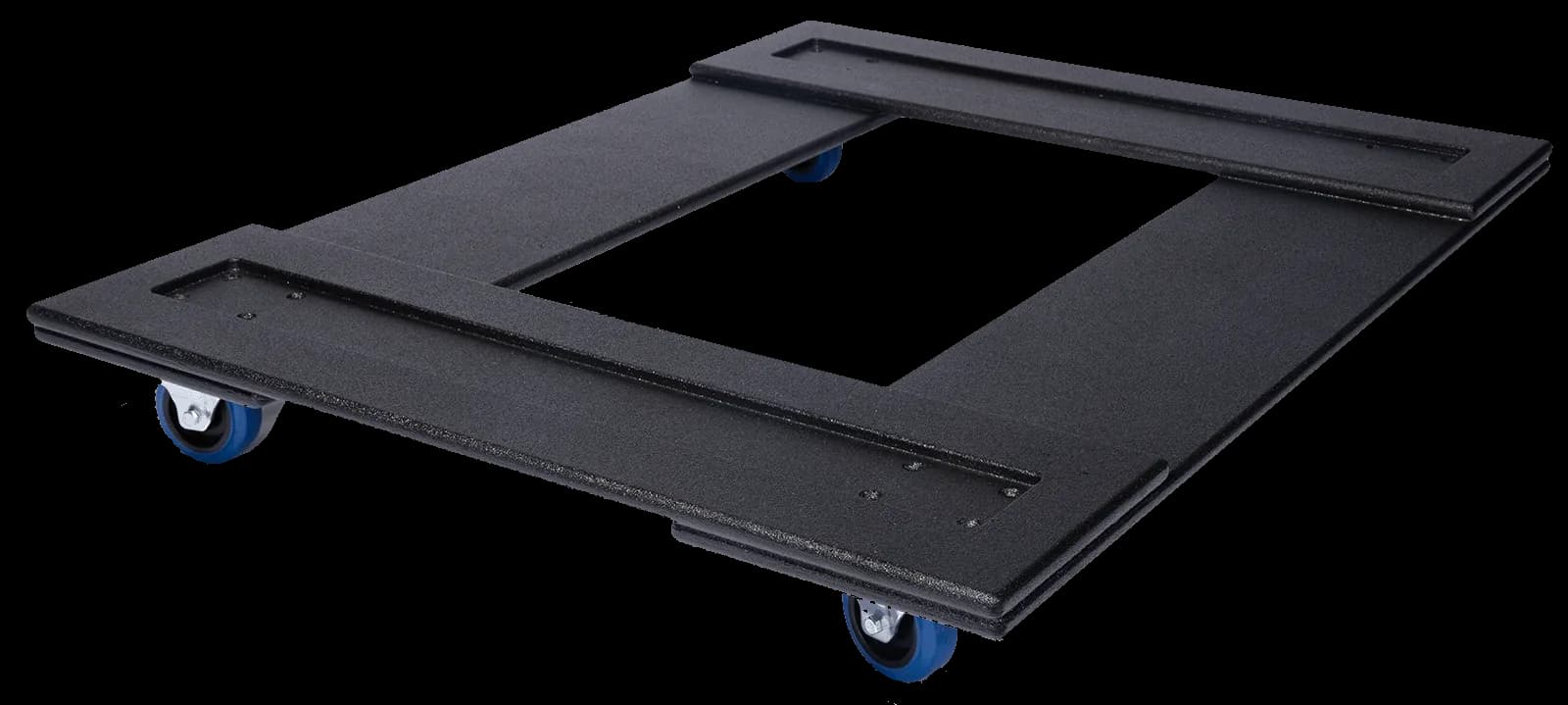

Horizontal Wheel Cart
$395
Carries 1 Kraken-MK3 plus 1 Makara-MK3, horizontal.
- 18 mm Baltic birch, polyurea coated. Recesses accept the cabinet sliders. 4 locking casters. Rated to 1,400 lb.

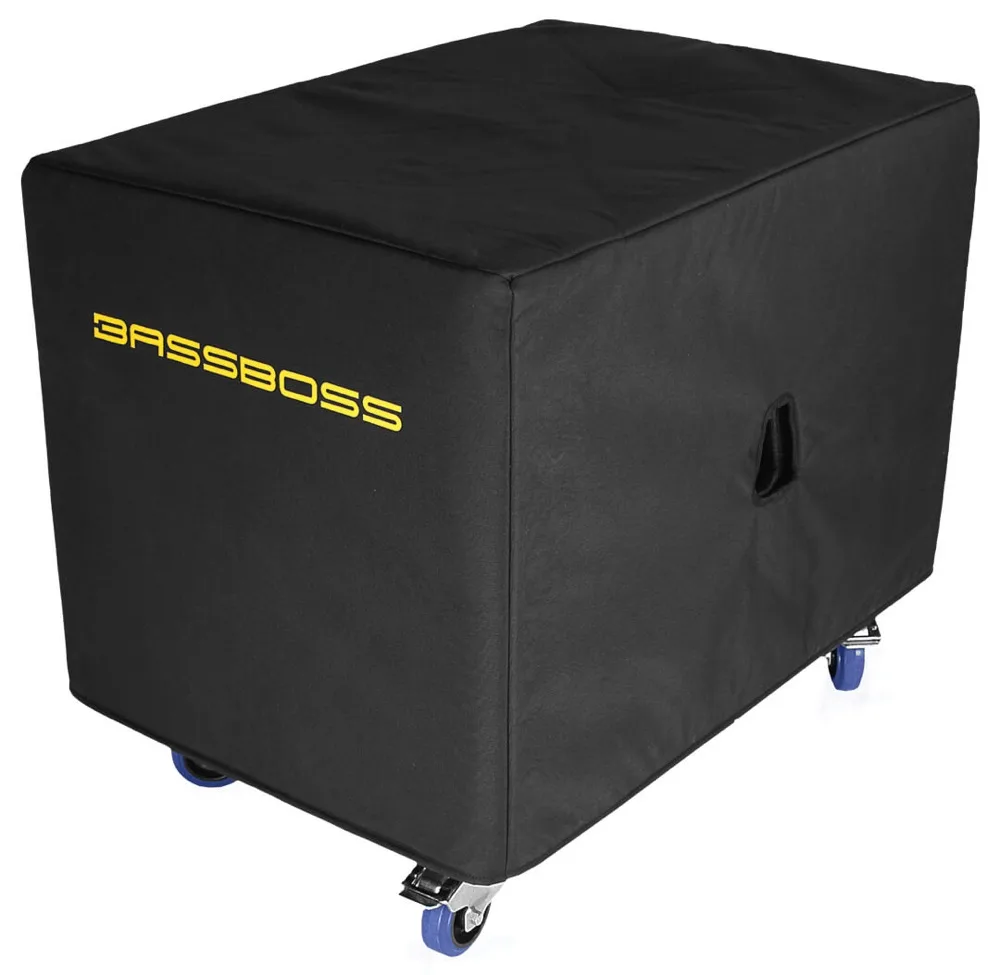

Kraken-MK3 Cover
$705–$780
Protect your gear with our heavy-duty covers. Built to survive abuse!
- F1 Maximum Protection
- BASSBOSS covers are American-made from highest-protection F1 1,000 denier Cordura nylon: abrasion resistant and water repellent. Inside, a lightweight, impact-resistant foam layer is bonded to a soft tricot lining that won't scuff your cab. Two handle cut-outs per side, Velcro split, finished with an embroidered BASSBOSS logo.
- Padding: F1 1/2″ foam · F2 1/4″ foam
- Exterior: 1,000 denier Cordura nylon, F1 and F2
- Lining: nylon tricot bonded to the foam, F1 and F2
- Water repellency: coated exterior, F1 and F2
Ships in three to four weeks.
Parts + labor
guaranteed.
3Submit a service request →
Year Warranty
3-year warranty, 6 on cabinet
Every BASSBOSS product ships with Sound Defense 3-year comprehensive warranty for parts and labor. Failed under normal use? We got you.
Free Freight, Lower 48
Free freight both ways.
BASSBOSS products are shipped via palletized freight to a local freight terminal or right to your door. Alaska, Hawaii or outside the US? Our team or a local dealer will take care of you.
On gear orders up to $20,000 in the lower 48, return freight is on us.
30
Day Money-Back
30-day money-back guarantee. We got your back.*
Every direct purchase from BASSBOSS is backed by a 30-day money-back guarantee, with free freight both ways on gear.*
*Return freight is free on gear (not apparel) for orders up to $20,000 in the lower 48: like-new in the original packaging, within 30 days of delivery, one free return per customer, pickup arranged by our team. Above $20,000 or outside the lower 48, please contact us for assistance.
Return policy →∞
Firmware Updates
Your system gets better + better.
ControlBASS firmware updates are free, forever. Performance improvements, new features, and expanded preset libraries, as they happen.
Expert Support
We get it! We've done this gig.
Our support team includes working engineers. They know the product because they've run it. Phone, email or chat, we're here to help.
Acoustical
| Loudspeaker Type | Quad 21″ self-powered subwoofer |
| Frequency Response | 27–100 Hz (±3 dB) |
| Max Sustained SPL | 145 dB @ 1m half-space |
| Peak SPL | 148 dB |
| Dispersion | 360° / Cardioid w/ multi-cabinet |
| Transducers | 4 × 21″ (540mm) neodymium · 4.5″ voice coils · 6th-order hybrid |
Amplifier / DSP
| Amplifier | 10,000W Class D (4 × 2500W) |
| DSP | 96 kHz · 21 onboard presets · up to 100 via ControlBASS |
| Voltage | 100–240V AC, 50–60 Hz (auto-sensing) |
| Current Draw | 18A @ 120V / 9.2A @ 240V |
| Cooling | Blower fans, auto thermal management |
| Protection | Multi-stage limiting, thermal, short-circuit, DC offset |
Connections
| Signal Input | XLR-F balanced |
| Signal Output | XLR-M balanced pass-through |
| Power In | Neutrik powerCON True 1 TOP (IP65) |
| Mains Plug | NEMA 5-15 (Edison): 120V |
| Max Cable Run | 100m per AVB segment |
| DSP Control | ControlBASS software (macOS / Windows) |
Physical
| Enclosure | Vented, short-horn hybrid: CNC-machined 18mm Baltic Birch plywood · dado joinery · extensive bracing |
| Fly System | 16 × internally braced M10 threaded mounting points |
| Handles | 8 steel bar handles |
| Feet | Interlocking foot pockets: stable multi-cabinet stacking |
| Finish | Polyurea coating: waterproof, impact-resistant, textured black |
| Dimensions (H×W×D) | 48″ × 48″ × 36″ (48.5″ high with feet) |
| Net Weight | 460 lbs (209 kg) |
Compare Subs Line
See how the Kraken-MK3 compares to the rest of the BASSBOSS low-end product line.
Head to head
BB15-MK3
Single 15" powered subwoofer
$2,995
- LF40-115Hz
- Max SPL127 dB
- AMP2,500 W
- DRVSingle 15″
DJ18S-MK3
Single 18" powered subwoofer
$3,495
- LF27 – 100Hz
- Max SPL129 dB
- AMP2,500 W
- DRVSingle 18″
SSP118-MK3
Single 18" powered subwoofer
$3,995
- LF30 – 100Hz
- Max SPL130 dB
- AMP2,500 W
- DRVSingle 18″
VS21-MK3
Single 21" powered subwoofer
$4,995
- LF28 - 100Hz
- Max SPL135 dB
- AMP2,500 W
- DRVSingle 21″
SSP215-MK3
Dual 15" powered subwoofer
$5,495
- LF35 – 100Hz
- Max SPL133 dB
- AMP5,000 W
- DRVDual 15″
SSP218-MK3
Dual 18" powered subwoofer
$5,995
- LF30 – 100Hz
- Max SPL136 dB
- AMP5,000 W
- DRVDual 18″
ZV28-MK3
Dual 18" powered subwoofer
$5,995
- LF23 – 90Hz
- Max SPL134 dB
- AMP5,000 W
- DRVDual 18″
Makara-MK3
Double 21" powered subwoofer
$7,995
- LF23 – 100 Hz
- Max SPL140 dB
- AMP5,000 W
- DRVDual 21″
This Model
Kraken-MK3
Quad 21" powered subwoofer
$17,995
- LF27 – 100 Hz
- Max SPL145 dB
- AMP10,000 W
- DRVQuad 21″
Subs to Tops Ratios.
The Kraken-MK3 Subwoofer plays nice with every BASSBOSS top. Click any model to see how many Kraken-MK3s it can actually drive. The answer will surprise you.
Not Ideal
SV9-MK3
Single 9" powered top
Too small for an array
DiaMon-MK3
Single 12" powered top
1× eachDetails →
DV12-MK3
Single 12" powered top
1× eachDetails →
CCM12-MK3
Single 12" powered stage monitor
1× eachDetails →
Attuned12
Single 12" powered loudspeaker
1× eachDetails →
AT212-MK3
Dual 12" powered top
1-2× eachDetails →
AT312-MK3
Triple 12" powered top
1× eachDetails →
MFLA-MK3
Dual 12" powered line array
1-2× eachDetails →
Krakatoa
Quintuple 18" powered point source
∞😉🤯 up to 8× eachDetails →
Popular Systems.
The Kraken-MK3 in complete systems: subs and tops, dialed in and ready to go.
Stackatoa Top
Krakatoa
Quintuple 18″ point-source top
$17,995
The Kraken is the floor anchor of the Stackatoa system. Stack Krakatoa tops overhead for a self-contained monster rig that needs no external amplification, no DSP rack, no compromises.
View Krakatoa →

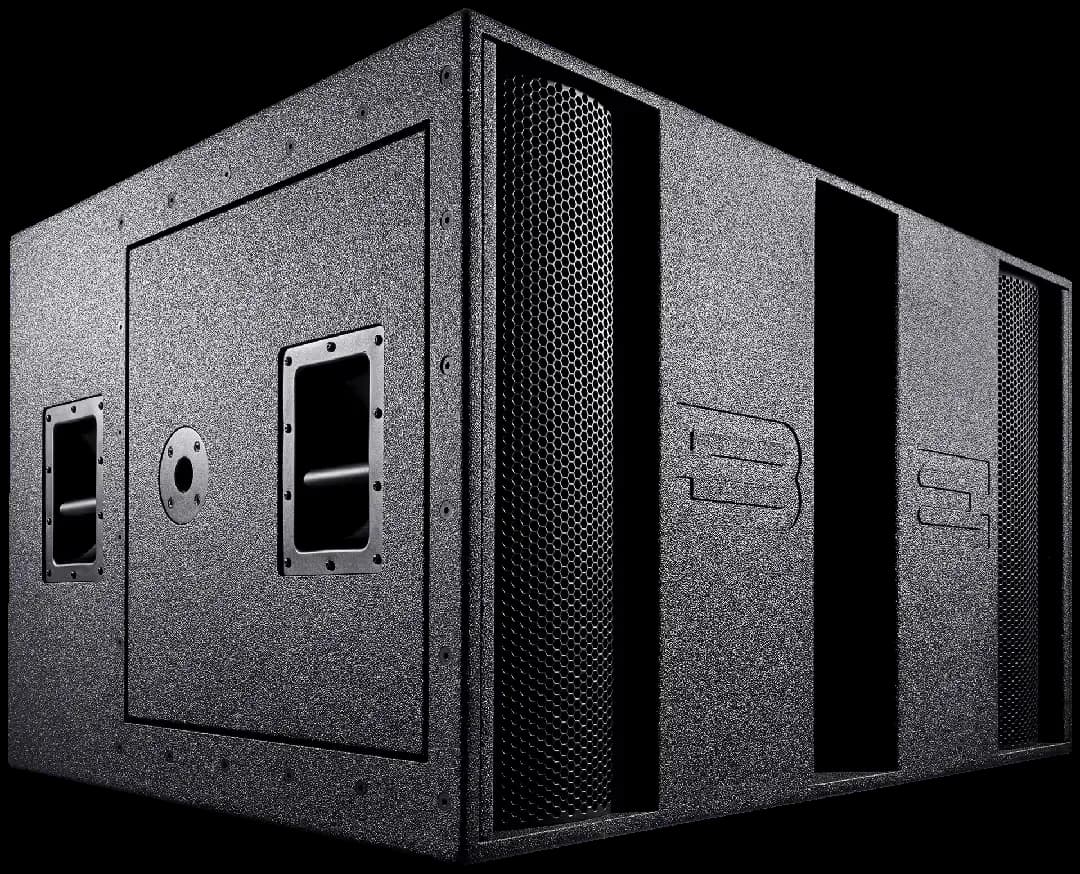

Stackatoa Mid
Makara-MK3
Double 21″ powered subwoofer
$7,995
Add Makaras to build a tiered sub array. Same 21″ driver family, same DSP architecture: the system scales coherently and ControlBASS manages all of it from one screen.
View Makara-MK3 →

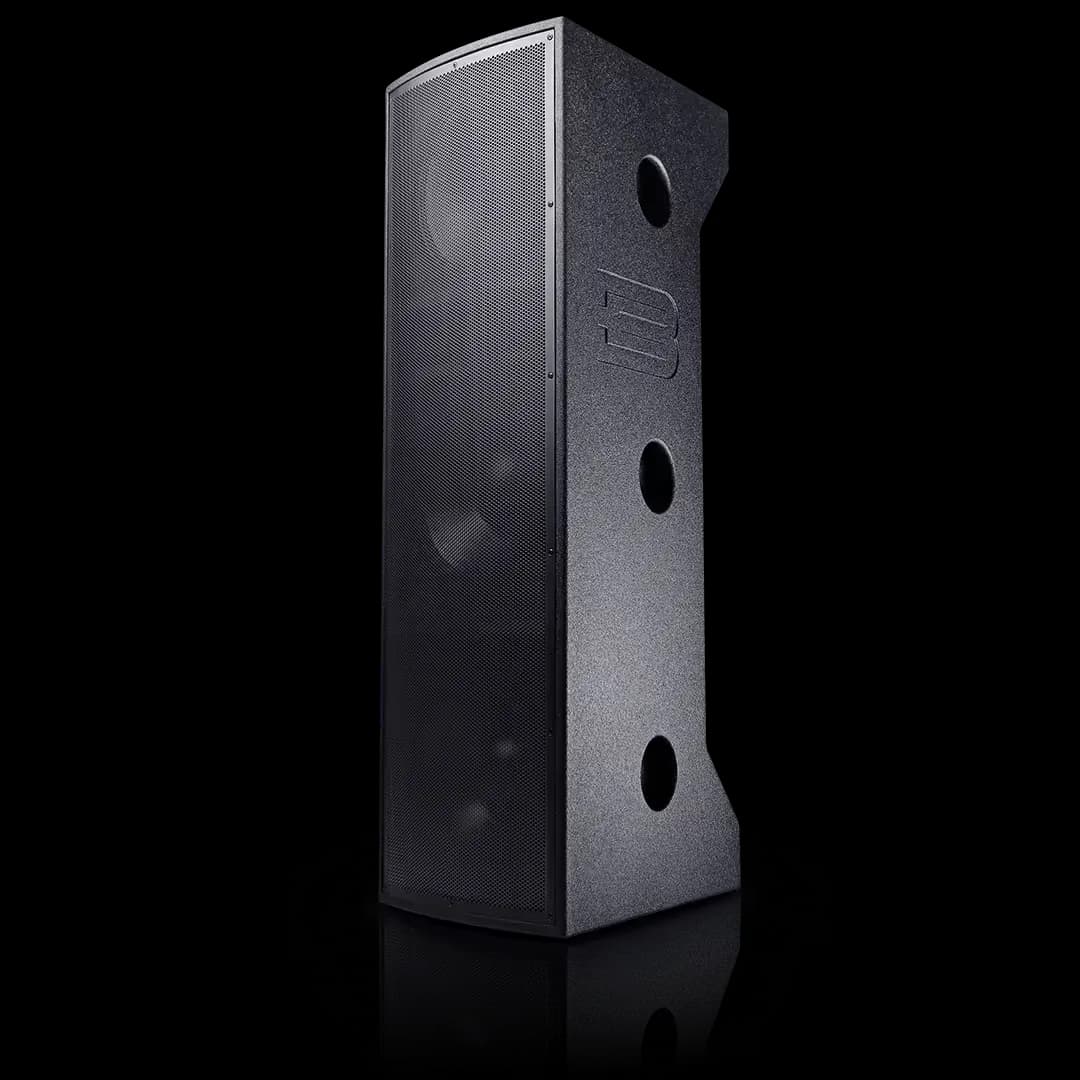

Production Top
AT312-MK3
Triple 12″ powered production top
$5,495
When the Krakatoa isn't in the spec, the AT312 matches the Kraken's SPL ceiling. A festival-grade full-range system in two product lines.
View AT312-MK3 →

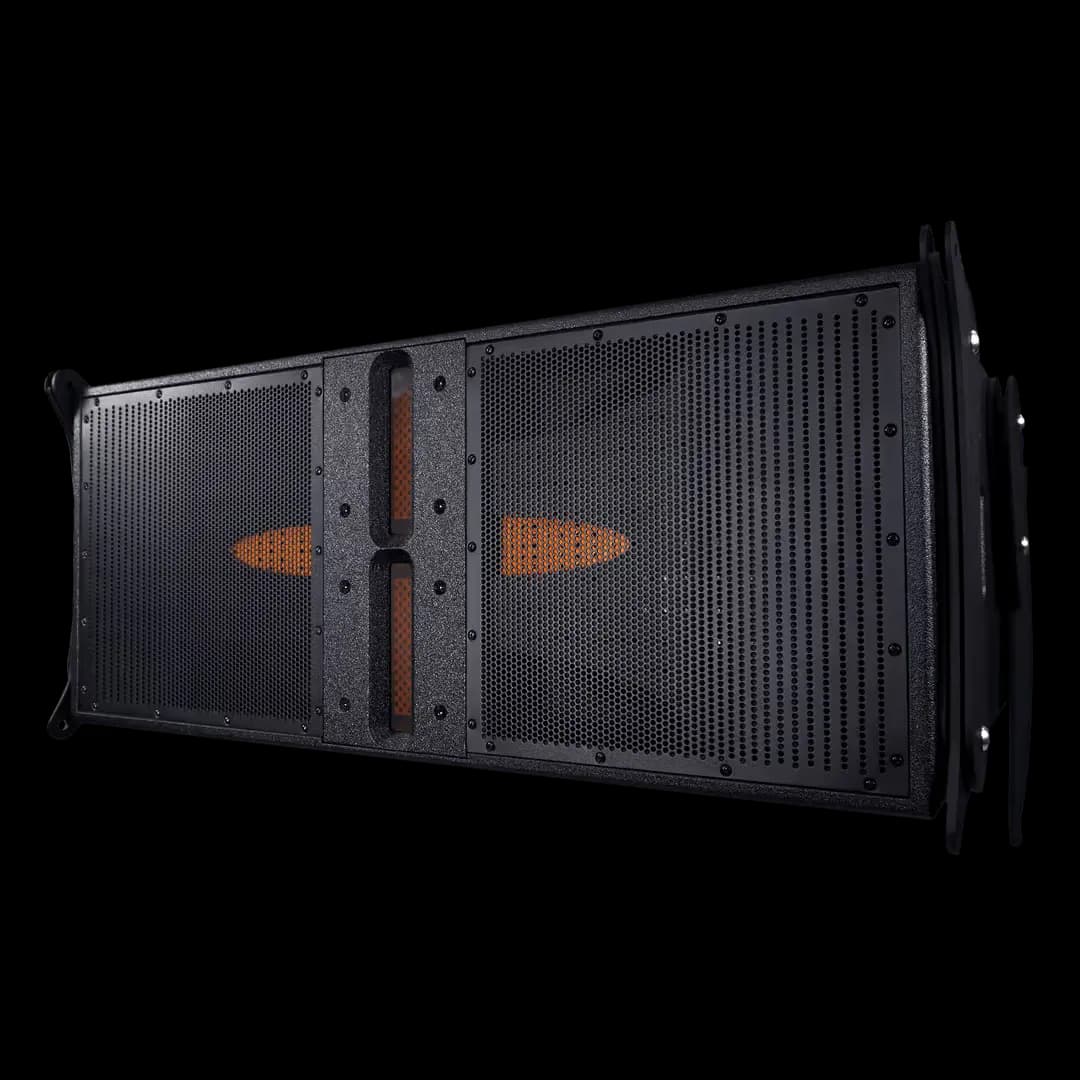

Line Array Match
MFLA-MK3
Dual 12″ powered line array element
$6,995
Four 21s on the floor, MFLA line array overhead: the festival rig that installs in minutes. ControlBASS bridges sub array to hang from one screen.
View MFLA-MK3 →
Design your ideal system with our self-serve tools.
Interactive chart
System Match
Frequency Range Overlap: see which products cover which ranges, and where a top and sub pair overlaps or leaves a gap.
Sound education
SPL vs Distance
Sound drops with the inverse square law. See how much level you lose at every distance from the source.
Sound education
How Low Can You Go?
Play tones through your own speakers and sweep down to find where they tap out, then see what a BASSBOSS sub would add.
System design
PredictBASS
Model bass coverage in any space before load-in. Drop in subs, see the dead zones, optimize placement.
The All New
ControlBASS
With ControlBASS, any laptop becomes a full system controller over standard Ethernet. Monitor, tune, and recall presets, without touching a cabinet. Free for macOS and Windows.
Onboard presets tuned for each cabinet, and up to 100 presets via ControlBASS. An all-new GUI is coming soon.
Explore the factory presets
See what each preset changes and find a starting point for your setup. Keep the cabinet's preset number and name handy, then listen and adjust on site.
- →Explore illustrative filter curves
- →Up to 100 stored presets via ControlBASS
- →Explore this model's additional preset options
PRESET 01
Kraken 20-65LR
HP 20 Hz BW · LP 65 Hz LR
