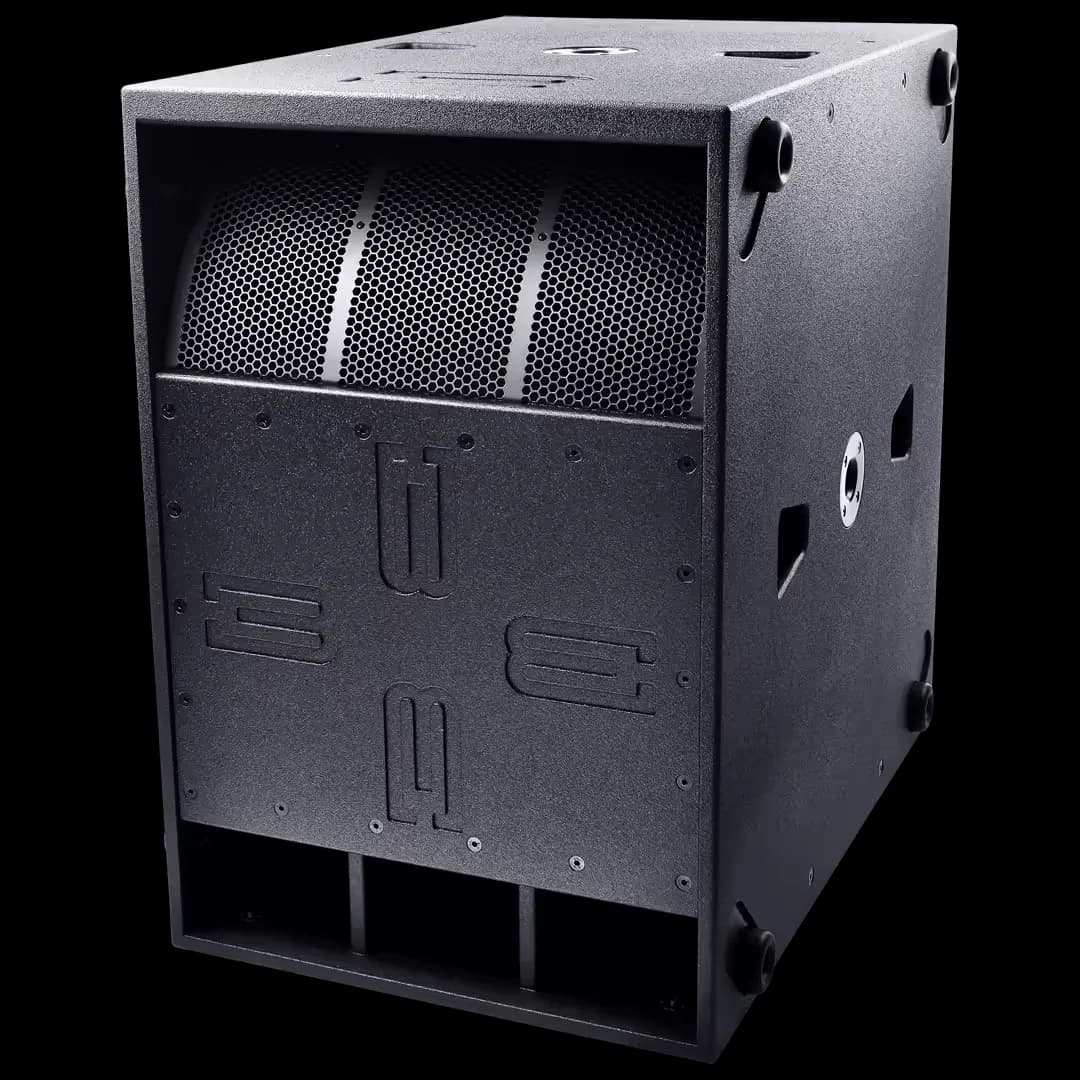

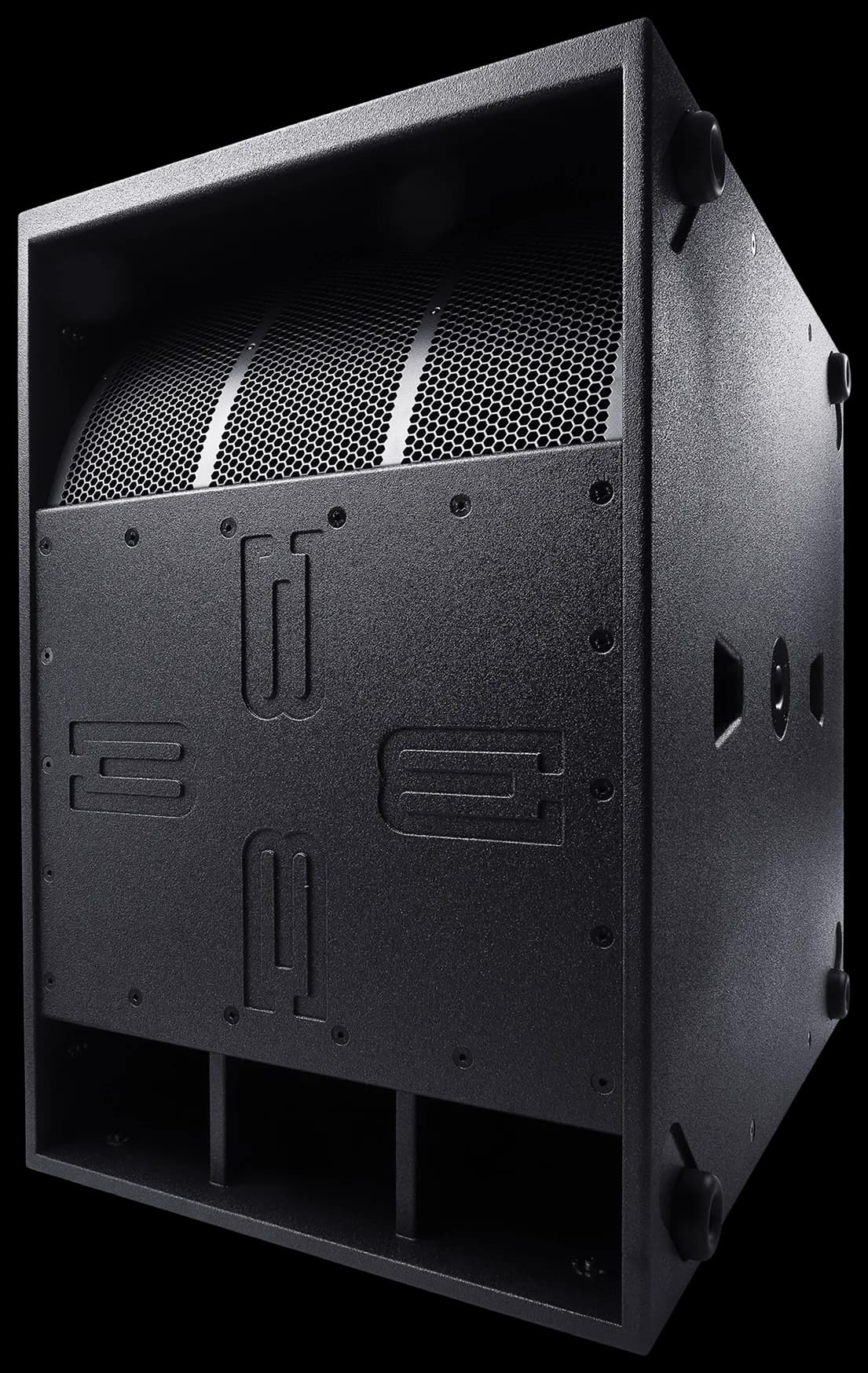

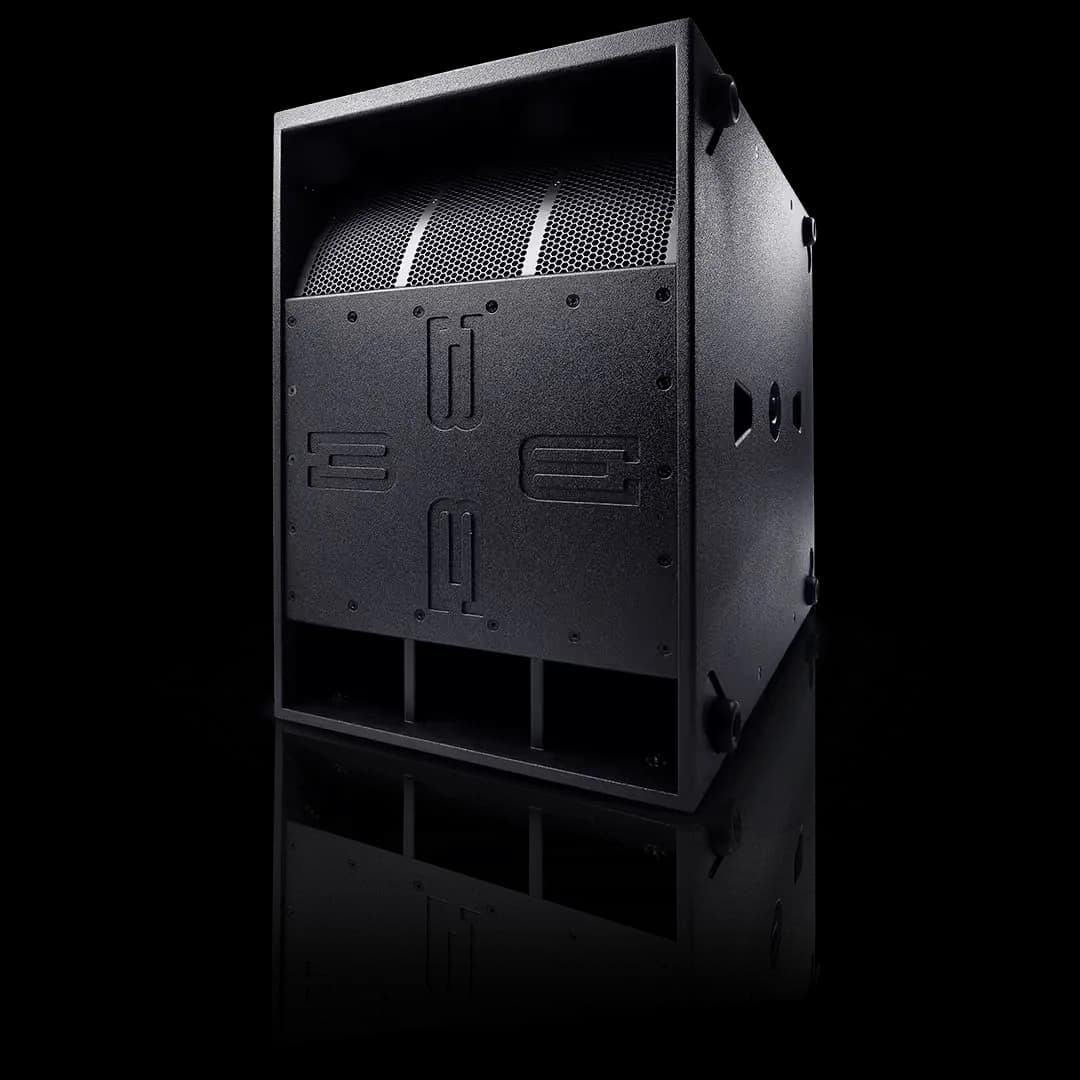

VS21-MK3
Single 21″ Powered Subwoofer
28-100Hz
Freq Response · ±3 dB
135dB SPL
Continuous SPL
2500W
Class-D Amplifier
96kHz
DSP · 100 Presets
Sweet and strong,
packs a wallop.
Ultra-deep, liquid BASS.
A rum punch of bass: sweet, deep, and powerful. Horn-loaded for the attack, vented for the extension, giving you total dance floor mastery.
You really can't have too many. 😉
A deep reserve of class-D continuous power means the amplifier is never the bottleneck. Higher rail voltages slam the peaks, while steady sustained output keeps the low end liquid.
The secret ingredient is powerful DSP limiting and protection.
Five limiters work in concert, including thermal, excursion, and clipping, each protecting the driver differently. The woofer can take everything you throw at it while the transients stay clean.
Warning: BASSBOSS is addictive.
The 6th-order bandpass hybrid has a large vented chamber tuned low, front-loaded onto a short horn that boosts sensitivity in the upper range. This combo creates a beautiful blend of impactful mid-bass and the low-lows down to 28 Hz.
Save your presets for max impact.
96 kHz DSP with 8 onboard presets, switchable in real time with zero dropout. Store up to 100 more with ControlBASS. Dial in once, save, rinse and repeat.
Parties anywhere, in any weather.
The auto-sensing 90–250VAC power supply provides reliable performance worldwide, and IP65 waterproof connectors with weather-sealed inputs keep the electronics safe from the elements.
Built for
these gigs.
Need massive bass from one cab you can move yourself?
VS21-MK3 is the answer.
If you need more or less, we'll point you to gear that's right for you.
Use VS21-MK3 for
✓ Mobile DJ flagship rig✓ Mid-size club installs✓ One-truck touring production✓ Boutique festival stages
Probably not the move for
✕ Stadium / arena mainstage see ZV28✕ Limited transport space see SSP118✕ Houses of worship see SSP218✕ Sub-200 cap rooms see BB15
Take a sip.
VS21-MK3 Single 21″ Powered Subwoofer full product walkthrough.
Diving Deep with the Fam.
Alican Bodur
ALI-J · @alijmusic
They deserve every penny!! I've wanted the speakers to be loud but at the same time provide a flat and clean frequency response without distortion. BASSBOSS delivers exactly that.
Dave Hodnick
Submersive Audio
Just had a killer show last night. We absolutely destroyed the club. The rig is sounding great! Here's what they said: "Kicked ass and props on the bass too, sound was really good!"
Eddie Mapp
FOH Touring Engineer
The human range of hearing starts at 20 Hz. Why settle for 40 Hz? BASSBOSS creates pure, powerful and natural low-end. When listening to acoustic tracks I heard and felt depth in the music that I haven't gotten from other speaker manufacturers.
Albert Caballero
Stage, Lights & Sound
I have been using Meyer Sound for years. I was at a festival and a friend of mine was running the BASSBOSS Subs. I was floored by the sound levels BASSBOSS was able to achieve using half the number of cabinets. From that point on, I switched to BASSBOSS.
The All New
ControlBASS
With ControlBASS, any laptop becomes a full system controller over standard Ethernet. Monitor, tune, and recall presets, without touching a cabinet. Free for macOS and Windows.
Coming soon: an all-new GUI and 15 onboard provided presets, with the ability to save 85 more custom presets.
The All New
ControlBASS
With ControlBASS, any laptop becomes a full system controller over standard Ethernet. Monitor, tune, and recall presets, without touching a cabinet. Free for macOS and Windows.
Coming soon: an all-new GUI and 15 onboard provided presets, with the ability to save 85 more custom presets.
→
Real-time remote control
Adjust gain, EQ, and delay without touching a cab.
→
Live system monitoring
Track levels, temperatures, and gain reduction across every unit.
→
100 stored presets
Now with up to 15 on-board presets, accessible from the amp.

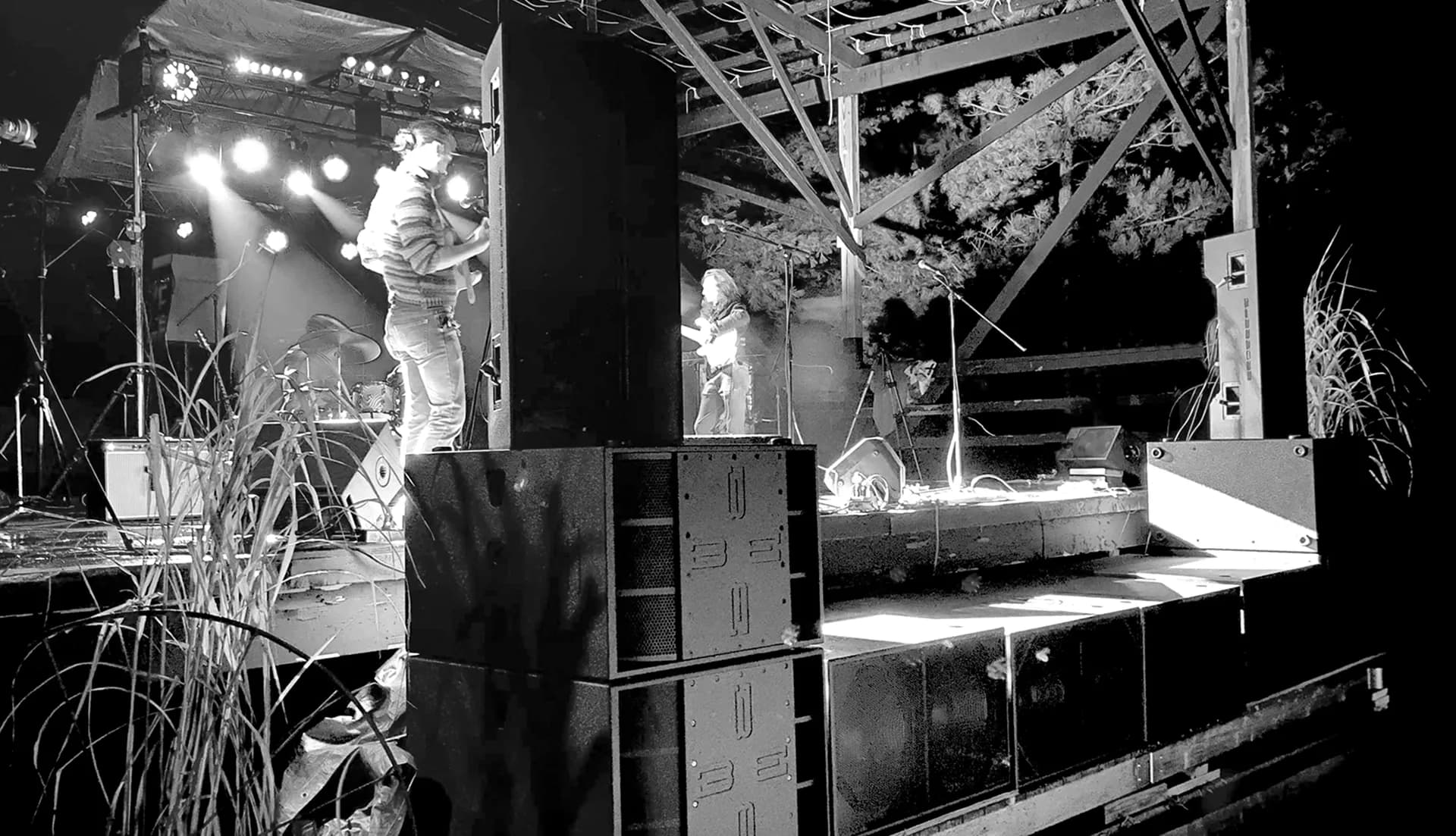

Getting Deep
The VS21-MK3 in its natural environment:
art cars, epic clubs, off-the-grid festivals and backyard parties.
Specs
+ Resources
Acoustical
| Loudspeaker Type | Single 21″ self-powered subwoofer |
| Frequency Response | 28-100 Hz (±3 dB) |
| Max Sustained SPL | 135 dB SPL @ 1m half-space |
| Peak SPL | 138 dB SPL @ 1m half-space |
| Dispersion | 360° × 360°: Cardioid mode w/ multiple cabinets |
| Transducers | 1 × 21″ (540mm) neodymium · 4.5″ (115mm) voice coil · vented short-horn hybrid |
Amplifier / DSP
| Amplifier | 2500W Class D |
| DSP | 96 kHz: 8 pushbutton presets, up to 100 stored via ControlBASS |
| Voltage | 100–240V AC, 50–60 Hz (auto-sensing) |
| Current Draw | 4.6A nominal @ 120V / 2.3A nominal @ 240V |
| Cooling | Passive heat sink + woofer airflow; 2× blower fans auto-engage under peak load |
| Protection | Multi-stage limiting: thermal, excursion, clipping |
Connections
| Signal Input | XLR-F balanced |
| Signal Output | XLR-M balanced: direct pass-through only |
| Network (×2) | EtherCON RJ45: 2-port switch, Milan AVB ready |
| Power In | Neutrik powerCON True 1 TOP (IP65): 15A / 1800W |
| Power Out | Neutrik powerCON True 1 female: 10A / 1200W |
| Mains Plug | NEMA 5-15 (Edison): included |
| Max Cable Run | 100m per AVB segment |
| DSP Control | ControlBASS software (macOS / Windows) |
Physical
| Enclosure | Vented short-horn hybrid (6th-order): CNC-machined 18mm Baltic Birch plywood, dado joinery |
| Fly System | 16 × M10 threaded fly points |
| Handles | 8 integrated handles |
| Pole Sockets | 4 × 35mm |
| Feet | 12 interlocking rubber feet + 8 interlocking foot pockets |
| Finish | High-pressure bonded polyurea: textured black |
| Grille | Perforated powder-coated steel |
| Dimensions (H×W×D) | 37.5″ × 24″ × 36″ (95cm × 61cm × 91cm) with feet |
| Net Weight | 180 lbs (82 kg) |
| Shipping Weight | 210 lbs (104 kg) |
Sub Line.
See how the VS21-MK3 compares to the rest of the BASSBOSS low-end product line.
BB15-MK3
Single 15" powered subwoofer
- LF40-115Hz
- SPL130 dB
- AMP2,500 W
- DRVSingle 15″
DJ18S-MK3
Single 18" powered subwoofer
- LF27 – 100Hz
- SPL132 dB
- AMP2,500 W
- DRVSingle 18″
SSP118-MK3
Single 18" powered subwoofer
- LF30 – 100Hz
- SPL133 dB
- AMP2,500 W
- DRVSingle 18″
This Model
SSP215-MK3
Dual 15" powered subwoofer
- LF35 – 100Hz
- SPL136 dB
- AMP5,000 W
- DRVDual 15″
SSP218-MK3
Dual 18" powered subwoofer
- LF30 – 100Hz
- SPL139 dB
- AMP5,000 W
- DRVDual 18″
ZV28-MK3
Dual 18" powered subwoofer
- LF23 – 90Hz
- SPL137 dB
- AMP5,000 W
- DRVDual 18″
Makara-MK3
Double 21" powered subwoofer
- LF23 – 100 Hz
- SPL143 dB
- AMP5,000 W
- DRVDual 21″
Kraken-MK3
Quad 21" powered subwoofer
- LF27 – 100 Hz
- SPL148 dB
- AMP10,000 W
- DRVQuad 21″
8 presets.
Instant recall.
Factory-tuned for every deployment. Each preset switches in real time with no dropout. Up to 100 stored over the network.
- →Hover to read exact Hz and dB values
- →Up to 100 stored presets via ControlBASS
- →Special presets for stacked / cardioid use
PRESET 01
Deep Live
27–70 Hz
01
02
03
04
05
06
07
08
8 presets.
Instant recall.
Factory-tuned for every deployment. Click a preset and the curve updates in real time. Hover to read exact Hz and dB values.
PRESET 01
Deep Live
27–70 Hz
Pair with tops crossed at 70 Hz: deepest sub reach
CB
Up to 100 stored presets via ControlBASS
Manage, name, and recall: all over Ethernet.
Select a preset
Preset 08: Cardioid Mode
Eliminate
stage bleed.
Cardioid Mode turns two stacked ZV28s into a directional low-frequency system. The DSP handles delay and polarity automatically. The rear lobe cancels itself out.
01
Position two subs
One forward-facing, one rear-facing directly behind it.
02
Select preset 8
One-touch activation: DSP handles delay and polarity.
03
Rear null engaged
Stage stays clean. FOH gets all the power.
Subs to Tops
Ratios.
The VS21-MK3 shines in complete BASSBOSS systems: sub and tops, dialed in and ready to go.
Not Recommended
SV9-MK3
Single 9″
Too small for an array
DiaMon-MK3
Single 12″
At least 2× eachDetails →
DV12-MK3
Single 12″
At least 4× eachDetails →
CCM12-MK3
Single 12″ monitor
At least 2× eachDetails →
Attuned12
Single 12″
At least 8× eachDetails →
AT212-MK3
Dual 12″
At least 8× eachDetails →
AT312-MK3
Triple 12″
At least 5× eachDetails →
MFLA-MK3
Dual 12″ line array
At least 8× eachDetails →
Krakatoa
Quintuple 18″ full-range
∞😉🤯 up to 32× eachDetails →
Popular
Systems.
The VS21-MK3 in complete systems: subs and tops, dialed in and ready to go.
Production Pair

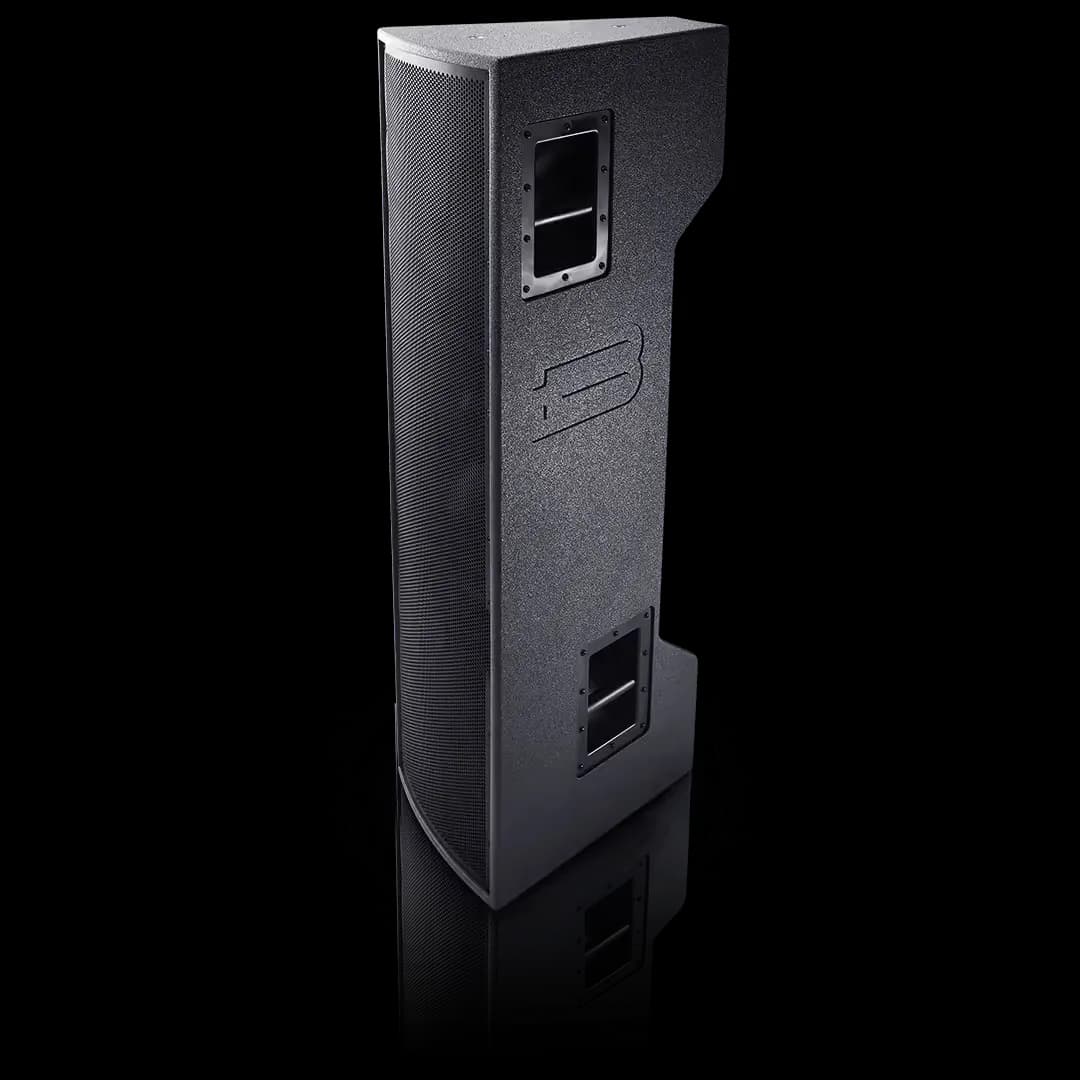

AT212-MK3
Dual 12″ powered two-way
Pairs with the VS21 for a high-output production rig that still loads in one truck.
View AT212-MK3 →
Most Popular

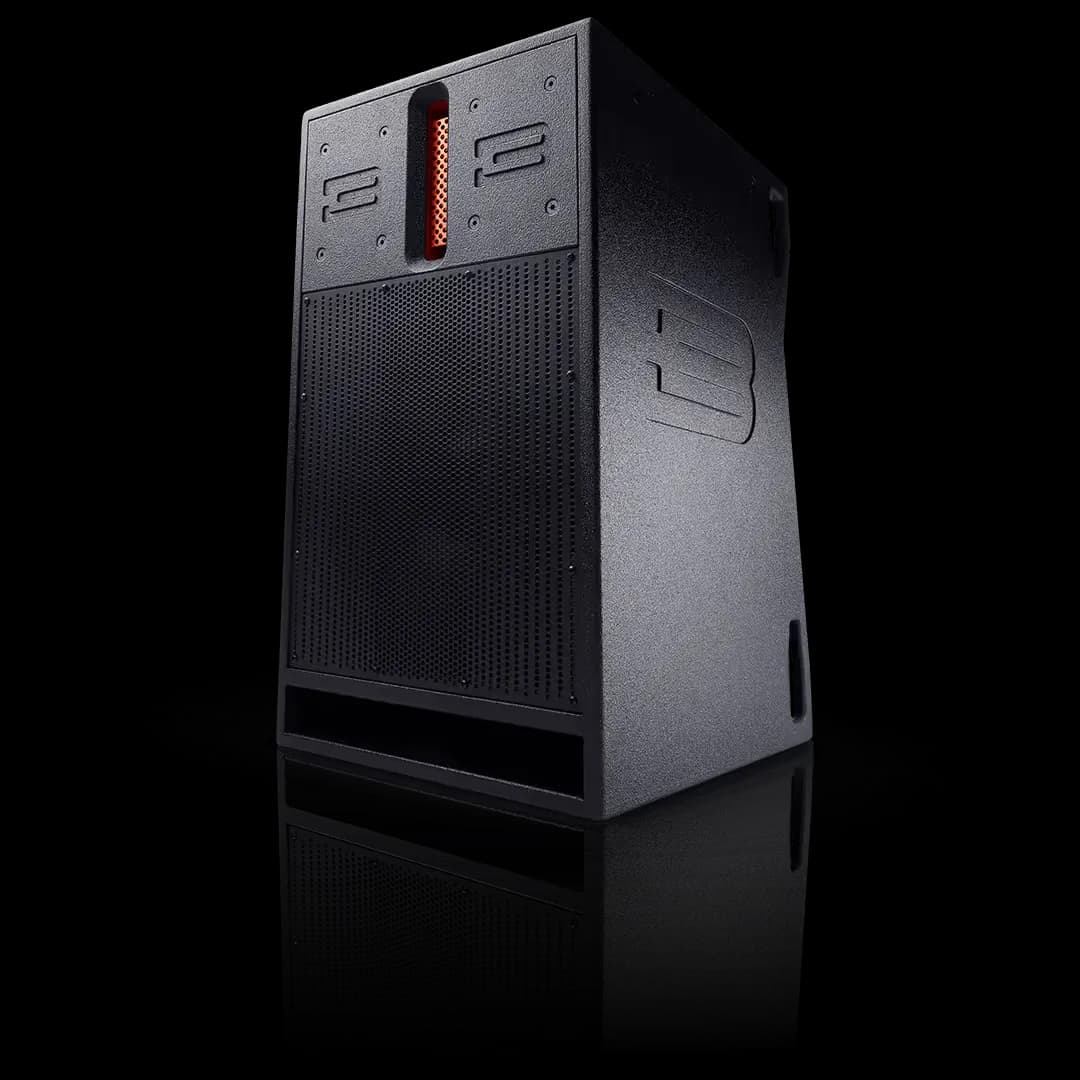

DV12-MK3
12″ powered full-range
Matched power, portability, and punch. The go-to DJ rig that loads fast and sounds huge.
View DV12-MK3 →
Compact Pair

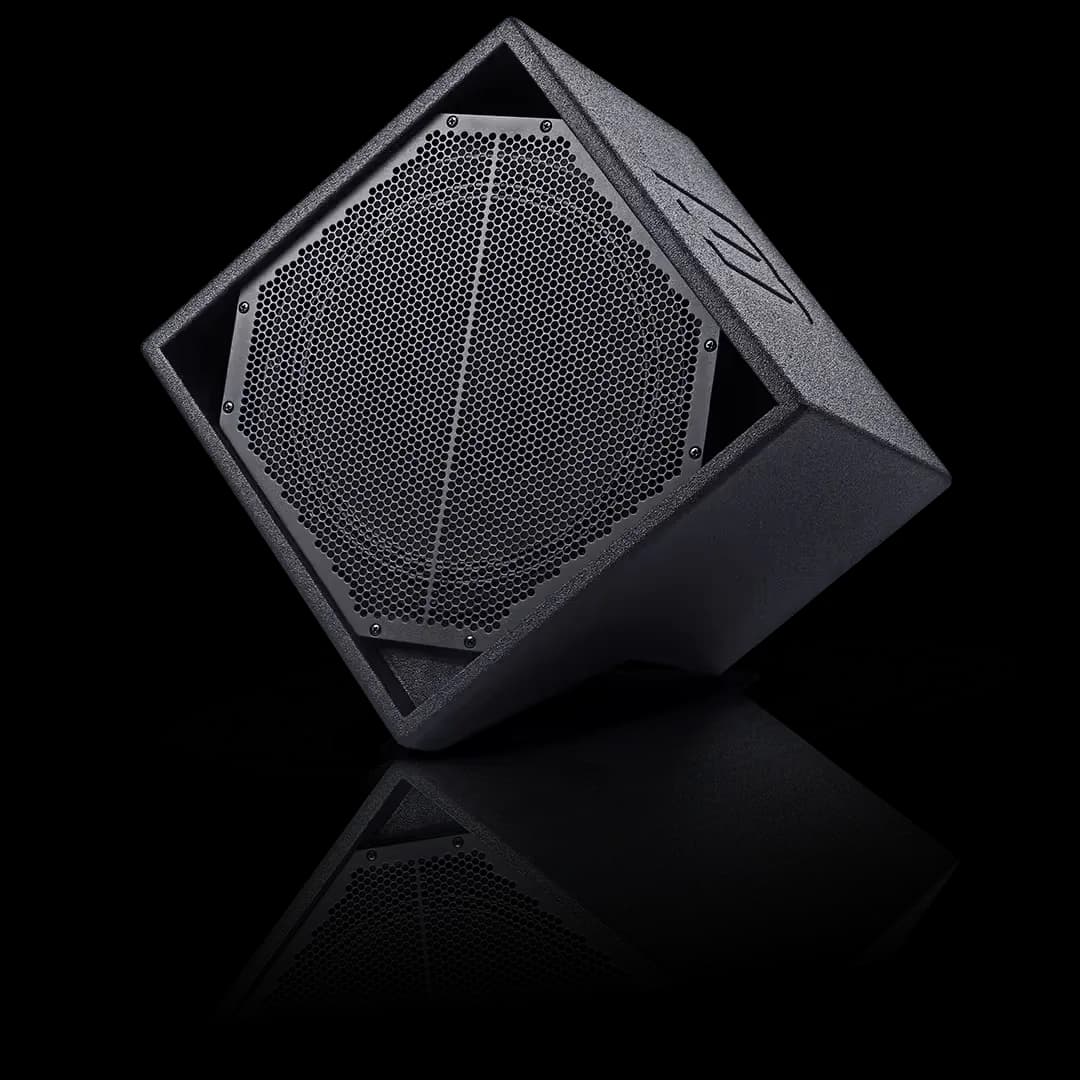

DiaMon-MK3
12″ powered coaxial top
Ultra-portable, ultra-high-output system. Maximum impact from minimum real estate.
View DiaMon-MK3 →
Monitor Pair

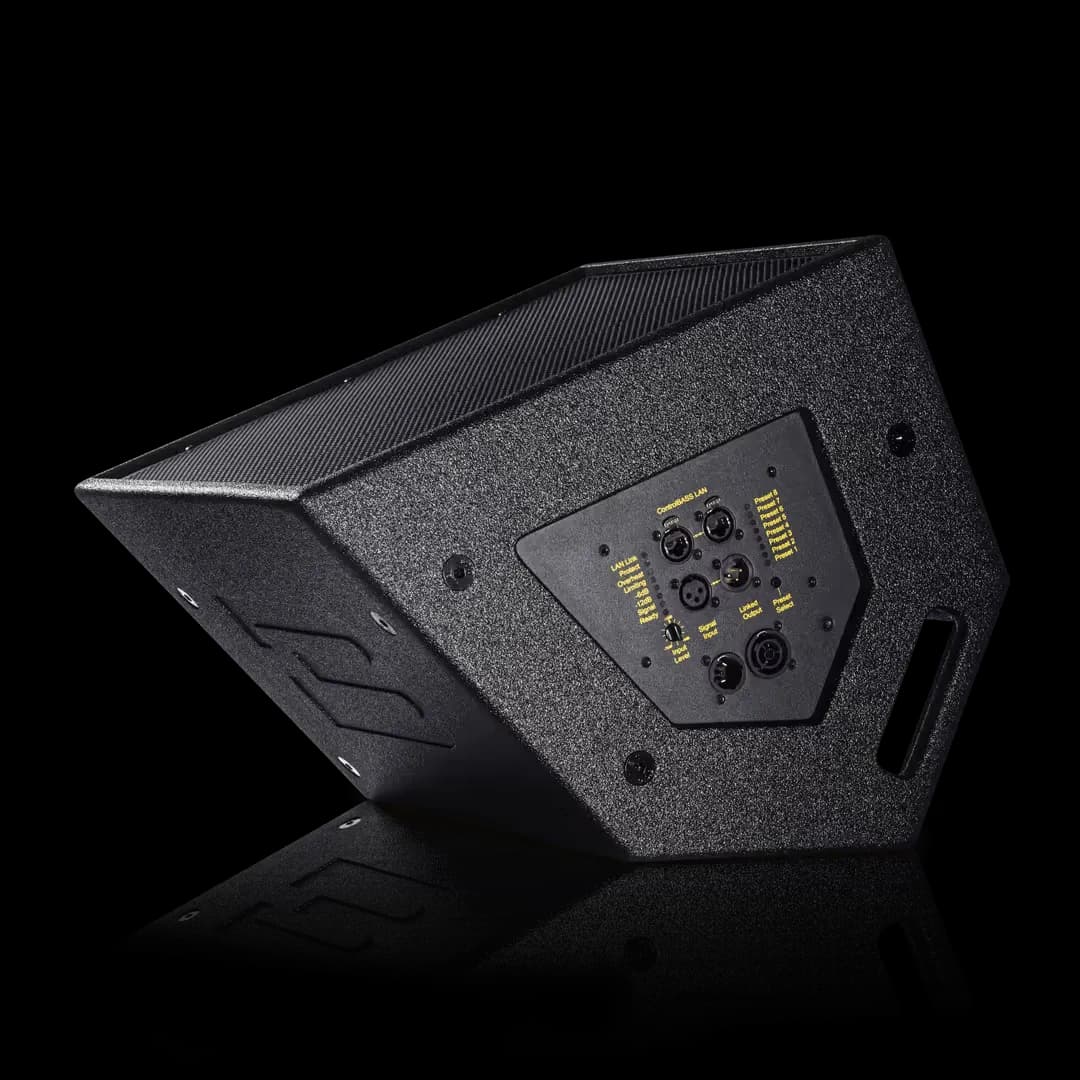

CCM12-MK3
12″ powered coaxial monitor
Add a coaxial monitor to the VS21 for a flexible DJ rig that covers both front-of-house and stage.
View CCM12-MK3 →
Plan Your System.
Design your ideal system with our self-serve tools.
Prefer to work with an expert?
Let's talk gear. →Get
Deep.
VS21-MK3
Single 21″ Powered Subwoofer
- 28-100 Hz Freq Response · ±3 dB
- 135 dB SPL Continuous SPL
- 2500 W Class-D Amplifier
- 96 kHz DSP · 100 Presets
Retail
$4,995USD
Outfit your rig.
Heavy-duty, production-ready carts and covers custom-designed to VS21-MK3 dimensions.

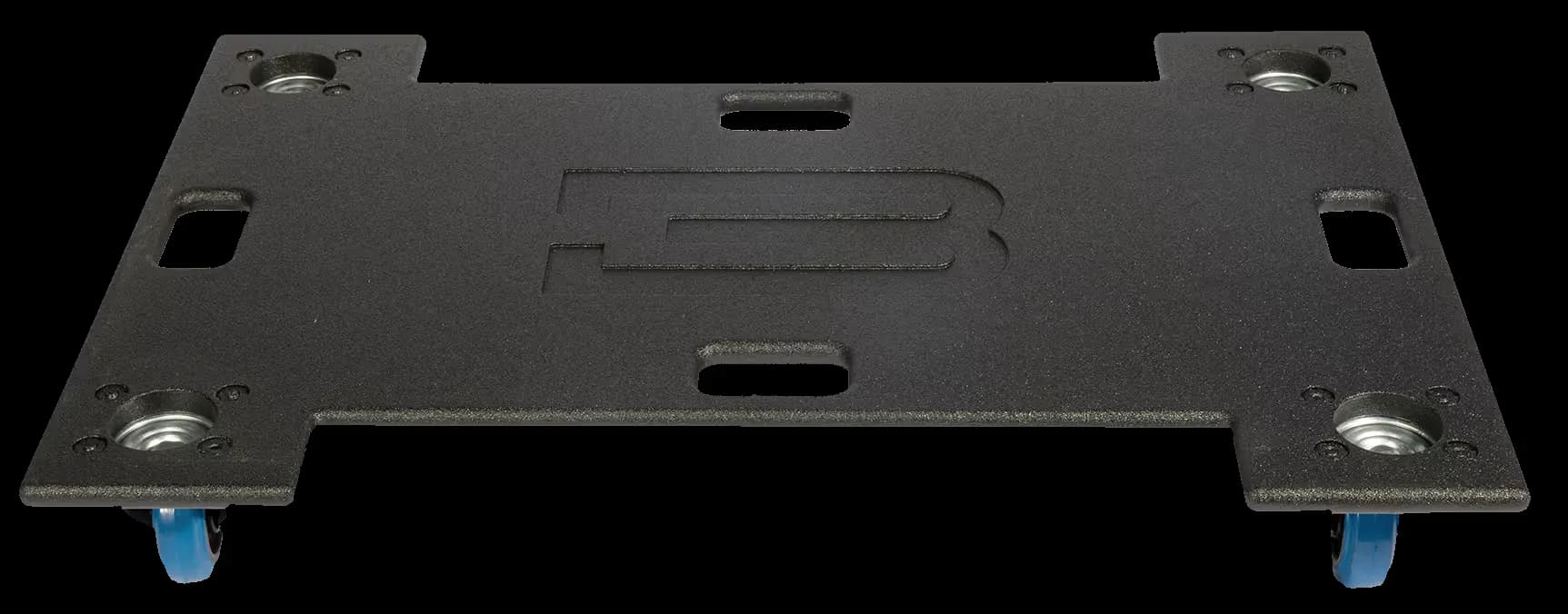

Vertical Wheel Cart
Birch plywood flat cart with 4 locking wheels and sockets to accept the cabinet feet. Transports 1 cabinet in vertical orientation.
Retail $295

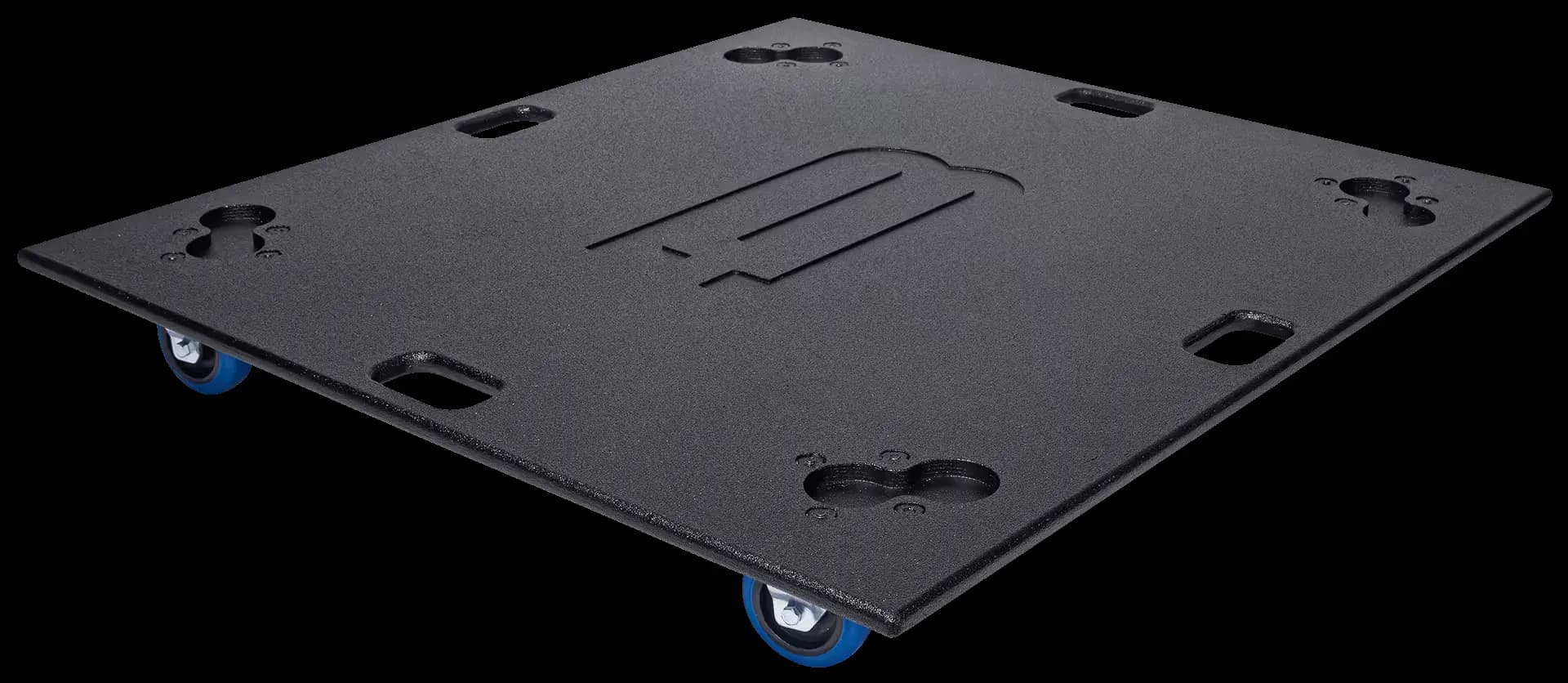

Horizontal Wheel Cart
Birch plywood flat cart with 4 locking wheels and sockets to accept the cabinet feet. Transports up to 3 stacked cabinets in horizontal orientation.
Retail $395
Finance It
Lease-to-own lets you expand your business now.
Apply Now →Through Synchrony & Hampton Ridge Financial
US + Worldwide Shipping
BASSBOSS products are shipped via palletized freight to a local freight terminal or right to your door.
Warranty & Support
The BASSBOSS Sound Defense warranty offers the peace of mind of knowing you're covered.
Submit a service request →Parts + labor
guaranteed.
3
Year Warranty
Parts and labor. No fine print.
Every BASSBOSS product ships with Sound Defense 3-year comprehensive warranty for parts and labor. Failed under normal use? We got you.
∞
Firmware Updates
Your system gets better + better.
ControlBASS firmware updates are free, forever. Performance improvements, new features, and expanded preset libraries, as they happen.
Expert Support
We get it! We've done this gig.
Our support team includes working engineers. They know the product because they've run it. Phone, email or chat, we're here to help.
