B
Bright Like
A Diamon
DiaMon-MK3
Single 12″ Powered Top
1200W
Class D Amplifier
123dB
Sustained Output
80°
Conical coverage
30lbs
Net weight
Hot Thing

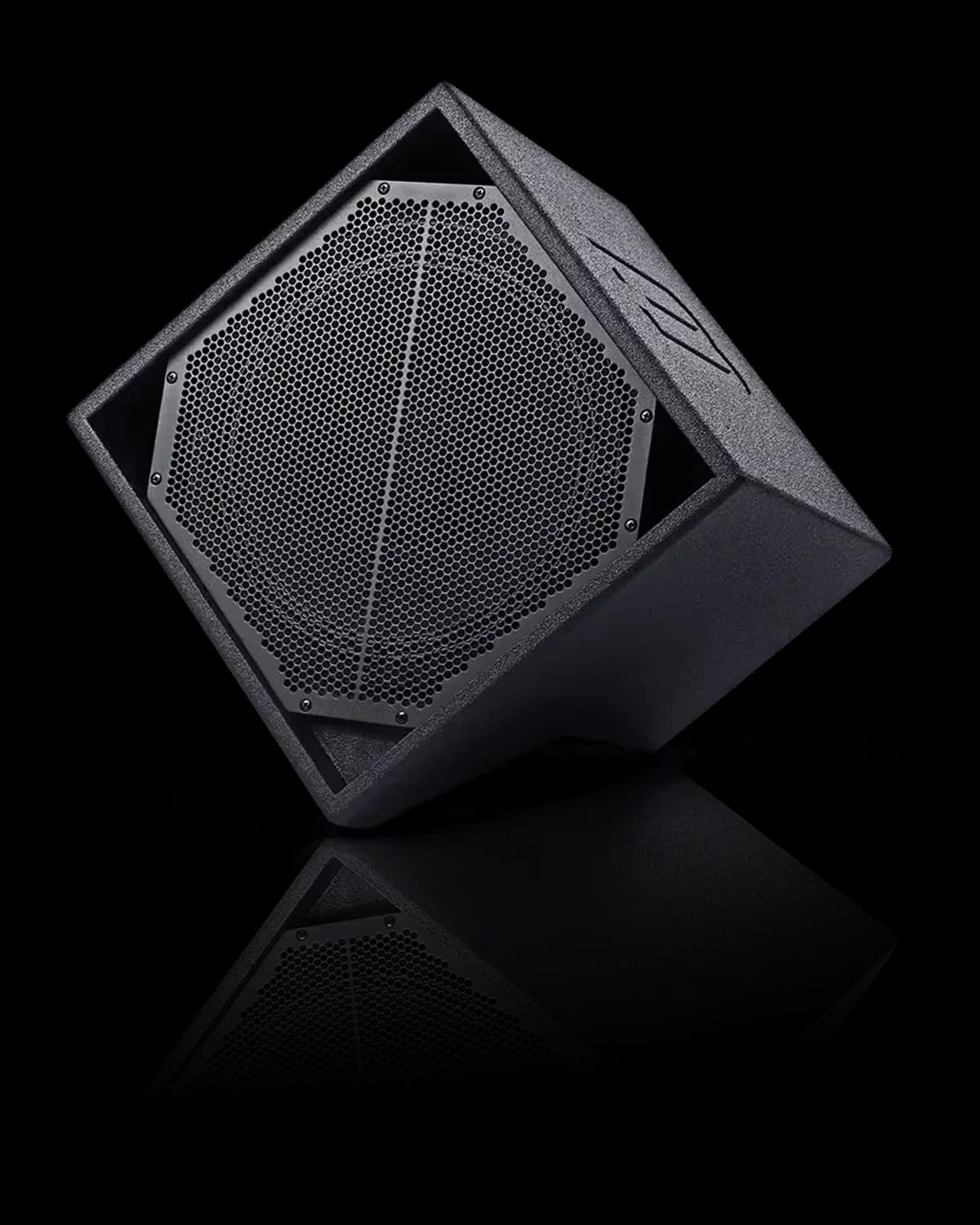

Miniscule cabinet, massive sound. The DiaMon-MK3 blows expectations with its power and intensity. This compact cab can easily hang with a double-driver sub without breaking a sweat. Signature co-axial design, signature BASSBOSS output.
Co-Axial Powerhouse
The DiaMon-MK3 puts a 3″ compression driver through the center of the 12″ woofer's pole piece for true co-axial point source output and clarity.
Shine Bright
The DiaMon-MK3 doesn't waste energy trying to reproduce the lows that your subs handle perfectly well. Its 1,200W of amplification is concentrated entirely on the important job of delivering loud, clear mids and highs. It's enough output to keep up with multiple large subwoofers without straining.
Minimal size. Maximal output.

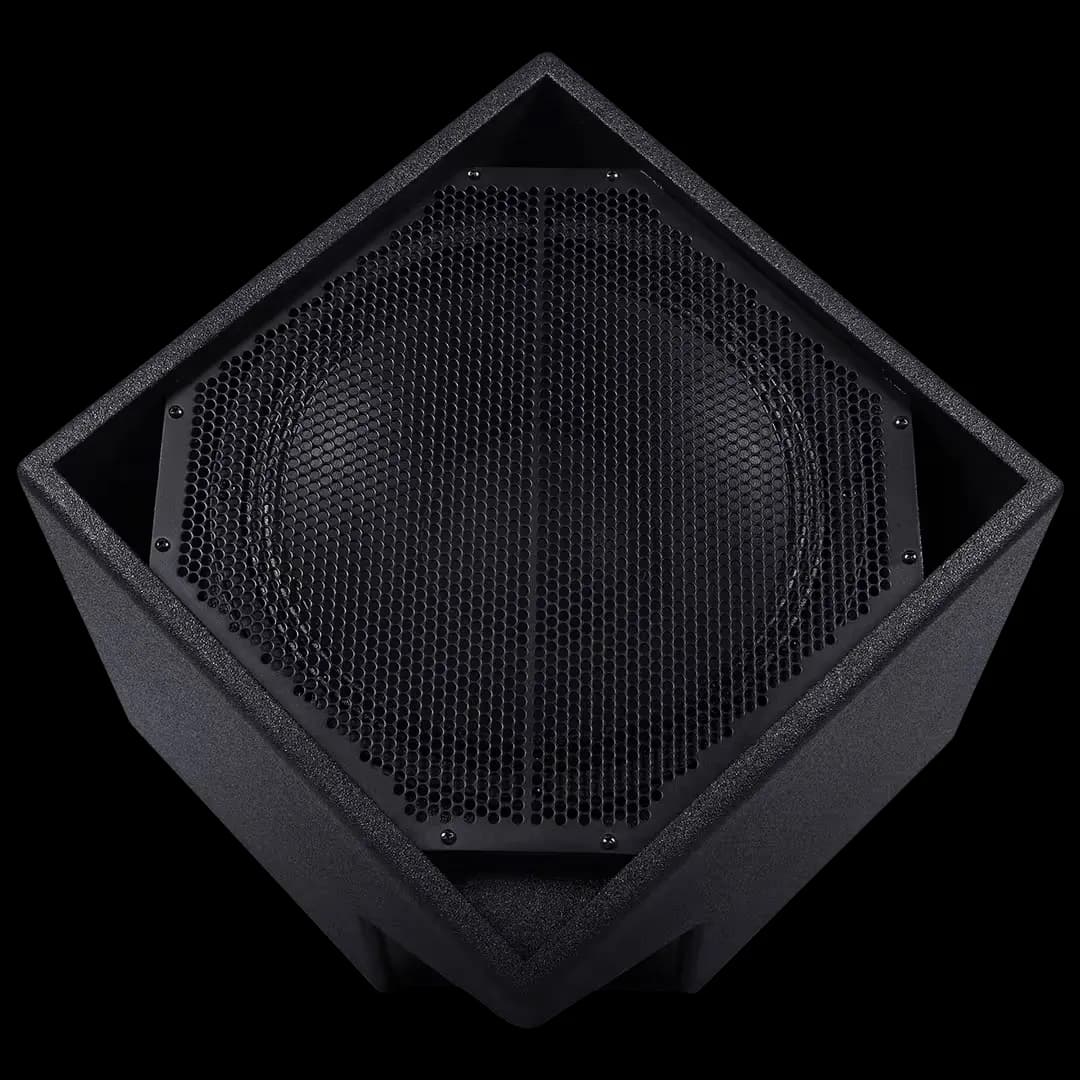

The DiaMon-MK3 packs a high-efficiency 12″ neodymium woofer with a 3″ copper voice coil into the smallest possible enclosure, just big enough to hold the driver, the 1,200W amplifier, and the DSP electronics. CNC-machined Birch plywood with dado joinery and a 35mm steel pole socket. At 14″ × 14″ × 13.5″, it fits in spaces no traditional top does.
Eight presets tuned for how you actually use it.
The MK3's 96 kHz DSP packs 8 pushbutton presets optimized for full-range operation, sub-top crossover modes, outdoor throw, and more. Up to 100 presets stored via ControlBASS software. Every preset includes phase alignment, EQ, HPF/LPF filters, and multi-stage limiting. Load it in, pick a preset, play.
Co-axial clarity, from every seat.
A 3″ diaphragm compression driver mounts through an 80° conical aluminum waveguide machined from the center of the midrange driver's pole piece. Both HF and LF drivers share the same acoustic center, for point source, naturally coherent, even coverage at 80° × 80°. Optional wall and ceiling mounts available for installed applications.
Diving Deep with the Fam.
Alejandro
Alejandro
The DJs are loving the low end. The DiaMons have massive headroom. Had such great feedback... everyone is happy with it.
John Kiousis
John Kiousis
When only the absolute best sound with no compromise will do in your nightclub bassboss products are the Lambo of PA speakers and subs. Every single component in the construction of the product down to the amplifiers they use are all the best possible parts available. If you are serious about your sound, BASSBOSS.
Ricky Lee
Ricky Lee
We recently had a friend—someone who’s played some of the biggest stages out there—perform on our BASSBOSS stage. After her set, she asked, “Who makes that monitor? That’s the best monitor I’ve ever used.” It was a Diamon!
Scott James
Scott James
Best 12 inch speaker I've ever ran through my studio. Have spent 1000s of hours listening and have zero complaints. We also use them on all our stages as stage monitors as well and never has had an issue. Very loud and clear. 11/10
The All New
ControlBASS
With ControlBASS, any laptop becomes a full system controller over standard Ethernet. Monitor, tune, and recall presets, without touching a cabinet. Free for macOS and Windows.
Coming soon: an all-new GUI and 15 onboard provided presets, with the ability to save 85 more custom presets.
The All New
ControlBASS
With ControlBASS, any laptop becomes a full system controller over standard Ethernet. Monitor, tune, and recall presets, without touching a cabinet. Free for macOS and Windows.
Coming soon: an all-new GUI and 15 onboard provided presets, with the ability to save 85 more custom presets.
→
Real-time remote control
Adjust gain, EQ, and delay without touching a cab.
→
Live system monitoring
Track levels, temperatures, and gain reduction across every unit.
→
100 stored presets
Now with up to 15 on-board presets, accessible from the amp.
Specs
+ Resources
Acoustical
| Loudspeaker Type | 2-Way Active Single 12″ Co-Axial Point Source Mid-High |
| Frequency Response | 50–19,000 Hz (±3 dB) |
| Max Sustained SPL | 123 dB @ 1m half-space |
| Peak SPL | 126 dB @ 1m half-space (limited in full-range) |
| Dispersion | 80° × 80° Conical |
| Transducer LF | 1 × 12″ (300mm) neodymium woofer · 3″ (76mm) copper voice coil |
| Transducer HF | 1 × 3″ (76mm) diaphragm compression driver · 1.4″ exit · 80° conical waveguide through pole piece |
Amplifier / DSP
| Amplifier | 1,200W Class D (2-channel) |
| DSP | 96 kHz: 8 pushbutton presets, 100 storage via ControlBASS |
| Voltage | 100–240V AC, 50–60 Hz (auto-sensing) |
| Current Draw | 1.4A @ 120V / 0.7A @ 240V (nominal) |
| Protection | Soft-clip limiting, thermal, short-circuit, DC offset |
Connections
| Signal Input | XLR-F balanced |
| Signal Output | XLR-M balanced (direct pass-through only) |
| Power In | Neutrik powerCON True 1 TOP (IP65) |
| Mains Plug | NEMA 5-15 (Edison) standard 3-pin grounded |
| Max Cable Run | 100m per AVB segment |
| DSP Control | ControlBASS software (macOS / Windows) |
Physical
| Enclosure | CNC-machined 18 and 15mm Birch plywood · dado joinery · 35mm pole socket |
| Finish | High-pressure bonded polyurea: waterproof, textured black |
| Grille | Perforated, powder-coated steel |
| Dimensions (H×W×D) | 14″ × 14″ × 13.5″ |
| Net Weight | 30 lbs (13.5 kg) |
| Shipping Weight | 35 lbs (16 kg) |
| Optional Hardware | Ceiling Mounts, Wall Mounts |
Top Line.
See how the DiaMon-MK3 compares to the rest of the BASSBOSS mid-high product line.
SV9-MK3
Single 9" powered top
- LF50 – 19,000Hz
- SPL121 dB
- AMP1,200 W
- DRVSingle 9″
CCM12-MK3
Single 12" powered stage monitor
- LF50Hz - 19kHz
- SPL126 dB
- AMP1,200 W
- DRVSingle 12″
This Model
DV12-MK3
Single 12" powered top
- LF45 – 19,000Hz
- SPL134 dB
- AMP3,200 W
- DRVSingle 12″
Attuned12
Single 12" powered loudspeaker
- LF65 – 19,000 Hz
- SPL136 dB
- AMP3,200 W
- DRVSingle 12″
AT212-MK3
Dual 12" powered top
- LF50 – 18,000Hz
- SPL142 dB
- AMP3,200 W
- DRVDual 12″
AT312-MK3
Triple 12" powered top
- LF60 – 19,000Hz
- SPL139 dB
- AMP4,000 W
- DRVDual 12″
MFLA-MK3
Dual 12" powered line array
- LF60 – 18,000Hz
- SPL142 dB
- AMP3,200 W
- DRVDual 12″
Krakatoa
Quintuple 18" powered point source
- LF25 - 19,000Hz
- SPL145 dB
- AMP7,500 W
- DRVQuad 18″
8 presets.
Instant recall.
Factory-tuned for every deployment. Each preset switches in real time with no dropout. Up to 100 stored over the network.
- →Hover to read exact Hz and dB values
- →Up to 100 stored presets via ControlBASS
- →Special presets for stacked / cardioid use
PRESET 01
DiaMon 45LR
45 Hz HPF (Linkwitz-Riley)
01
02
03
04
05
06
07
08
8 presets.
Instant recall.
Factory-tuned for every deployment. Click a preset and the curve updates in real time. Hover to read exact Hz and dB values.
PRESET 01
DiaMon 45LR
45 Hz HPF (Linkwitz-Riley)
Min SPL, Max LF Extension
CB
Up to 100 stored presets via ControlBASS
Manage, name, and recall: all over Ethernet.
Select a preset
Preset 08: Cardioid Mode
Eliminate
stage bleed.
Cardioid Mode turns two stacked ZV28s into a directional low-frequency system. The DSP handles delay and polarity automatically. The rear lobe cancels itself out.
01
Position two subs
One forward-facing, one rear-facing directly behind it.
02
Select preset 8
One-touch activation: DSP handles delay and polarity.
03
Rear null engaged
Stage stays clean. FOH gets all the power.
One top.
HOW many subs!?
Click any sub to see how many of them a single DiaMon-MK3 can keep up with. Numbers are conservative; in practice the top usually has more headroom.
BB15-MK3
Single 15″
At least 4× eachDetails →
SSP118-MK3
Single 18″
At least 4× eachDetails →
DJ18S-MK3
Single 18″ mobile
At least 4× eachDetails →
VS21-MK3
Single 21″
At least 2× eachDetails →
SSP215-MK3
Dual 15″
At least 2× eachDetails →
SSP218-MK3
Dual 18″ slim
At least 2× eachDetails →
ZV28-MK3
Dual 18″
At least 2× eachDetails →
Makara-MK3
Dual 21″
At least 2× eachDetails →
Kraken-MK3
Quad 21″
At least 1× eachDetails →
Popular
Systems.
The DiaMon-MK3 in complete systems: subs and tops, dialed in and ready to go.
Punchy Sub

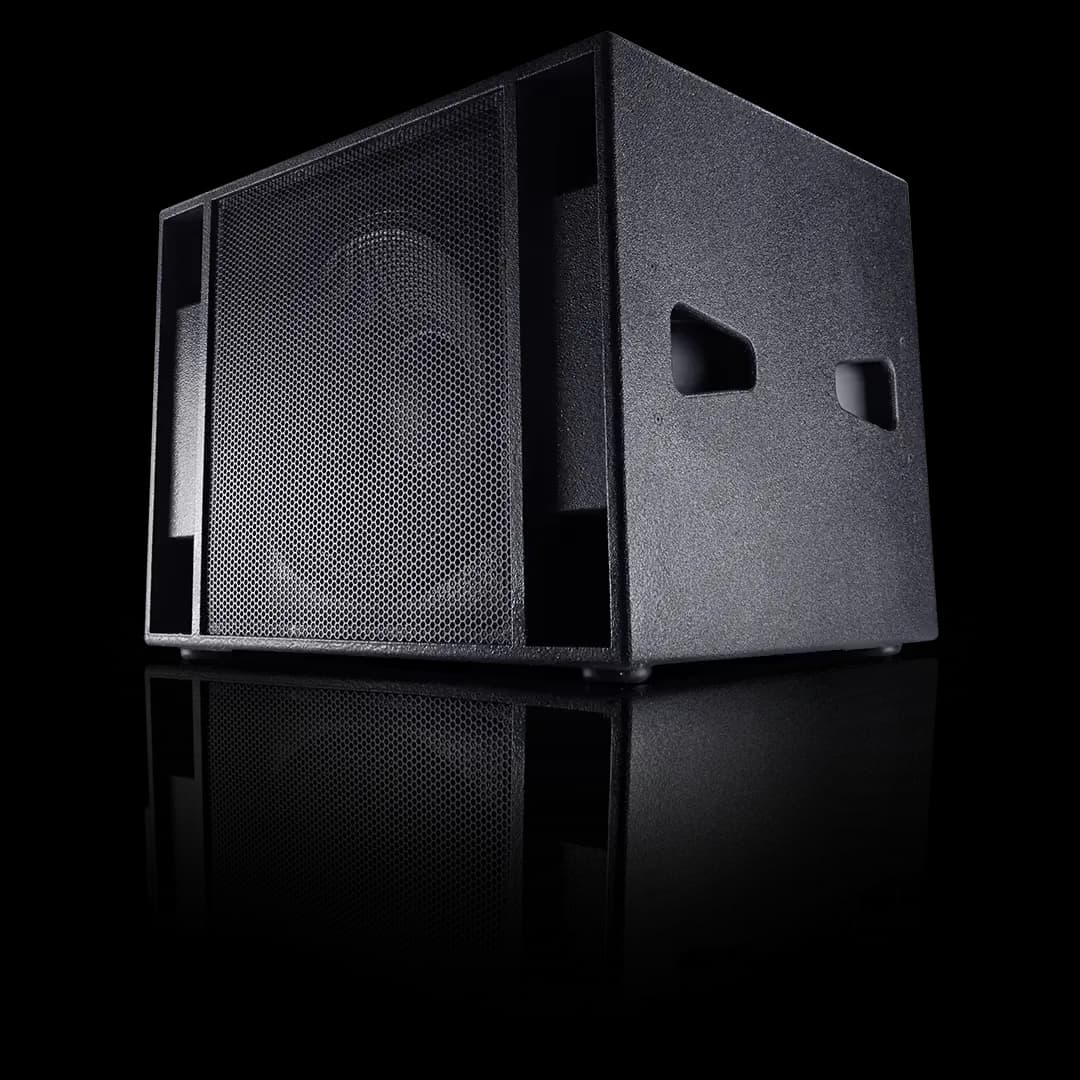

SSP118-MK3
Single 18″ powered subwoofer
A compact 18″ sub that matches the DiaMon's small footprint while adding serious punch and extension on the dance floor.
View SSP118-MK3 →
Most Popular Pair

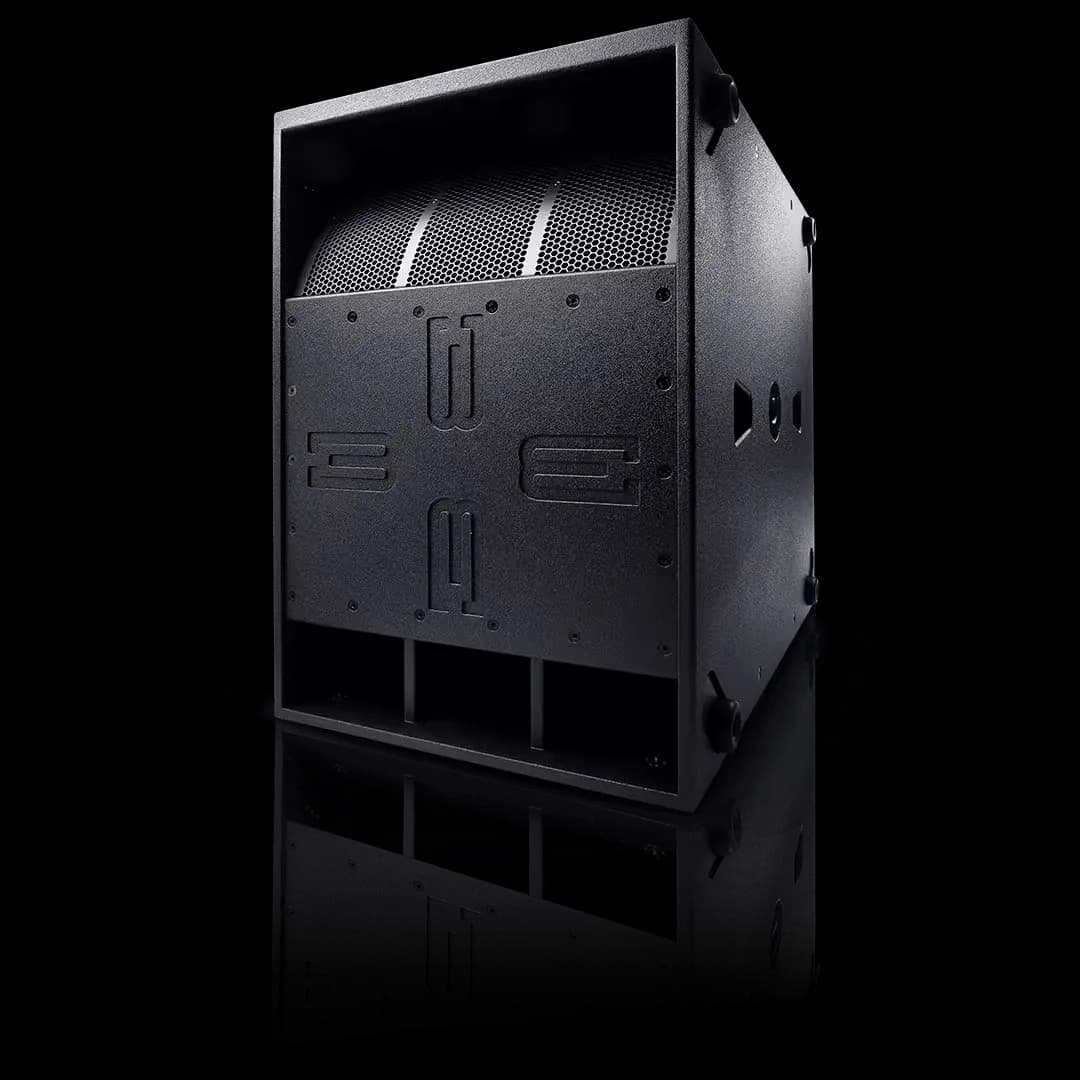

VS21-MK3
Single 21″ powered subwoofer
The VS21-MK3 provides the deep low end the DiaMon was designed to be paired with. Together they produce a full-spectrum sound field from the smallest possible footprint.
View VS21-MK3 →
Big Bass

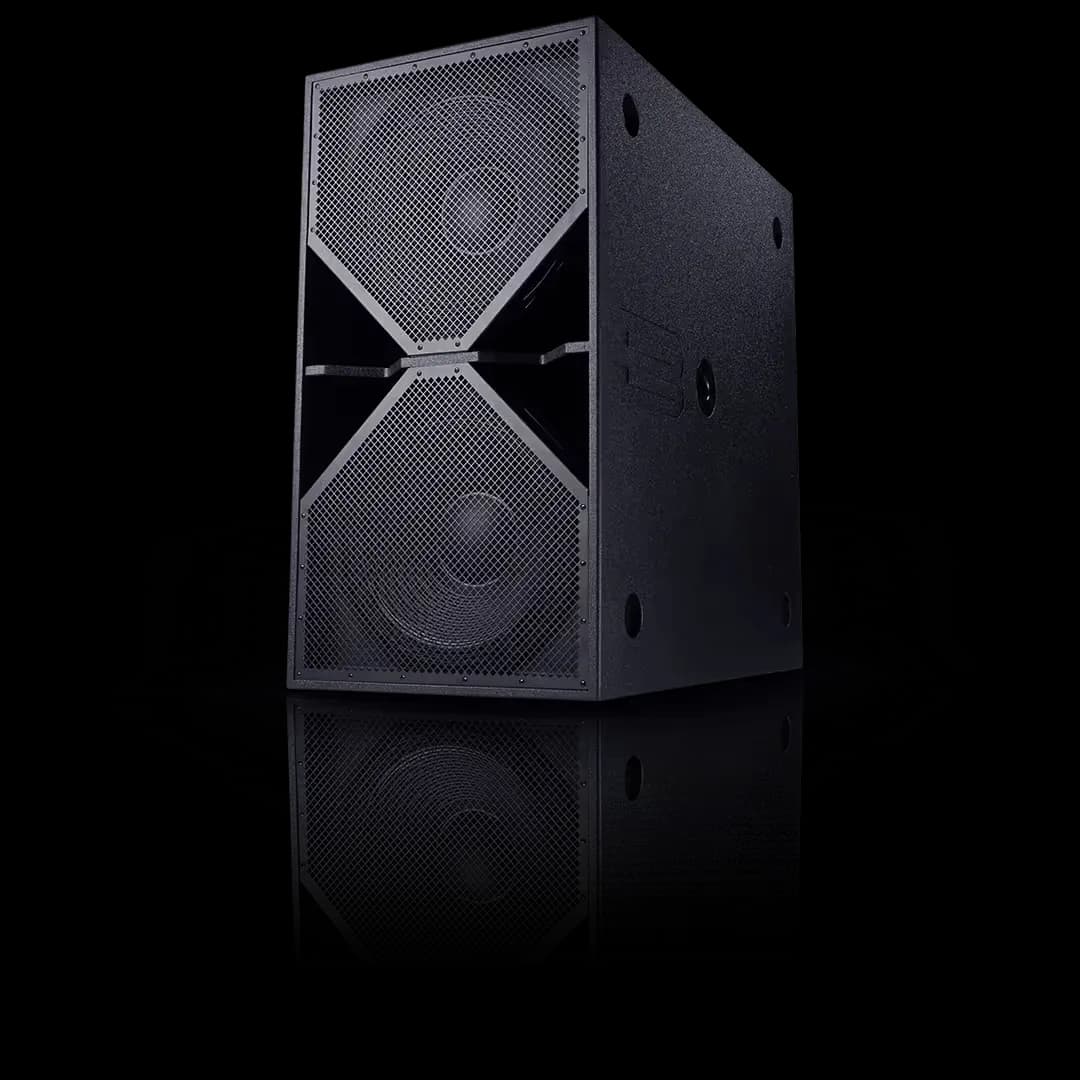

ZV28-MK3
Dual 18″ powered subwoofer
Two 18″ drivers of controlled low end beneath the DiaMon: scaled-up impact for dance floors and outdoor stages.
View ZV28-MK3 →
Plan Your System.
Design your ideal system with our self-serve tools.
Prefer to work with an expert?
Let's talk gear. →Get
Loud.
DiaMon-MK3
Single 12″ Powered Top
- 1200 W Class D Amplifier
- 123 dB Sustained Output
- 80 ° Conical coverage
- 30 lbs Net weight
Retail
$2,795USD
Finance It
Lease-to-own lets you expand your business now.
Apply Now →Through Synchrony & Hampton Ridge Financial
US + Worldwide Shipping
BASSBOSS products are shipped via palletized freight to a local freight terminal or right to your door.
Warranty & Support
The BASSBOSS Sound Defense warranty offers the peace of mind of knowing you're covered.
Submit a service request →Parts + labor
guaranteed.
3
Year Warranty
Parts and labor. No fine print.
Every BASSBOSS product ships with Sound Defense 3-year comprehensive warranty for parts and labor. Failed under normal use? We got you.
∞
Firmware Updates
Your system gets better + better.
ControlBASS firmware updates are free, forever. Performance improvements, new features, and expanded preset libraries, as they happen.
Expert Support
We get it! We've done this gig.
Our support team includes working engineers. They know the product because they've run it. Phone, email or chat, we're here to help.
DiaMon-MK3
Single 12″ Powered Top
Hidden in Plain Sight.
